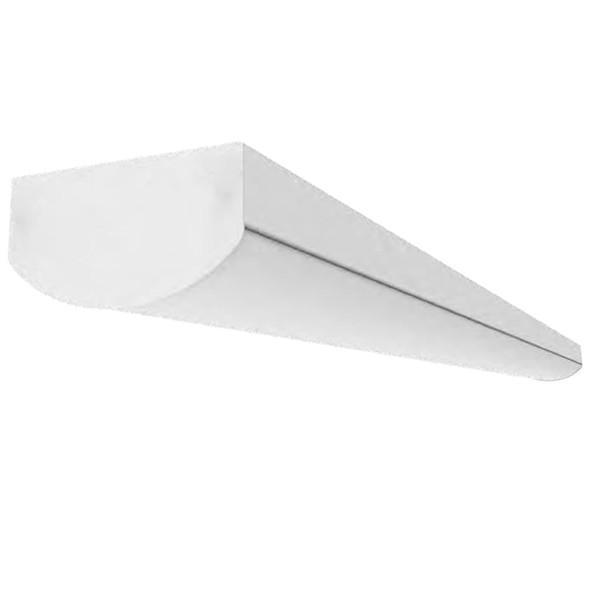

2ft. adjustable linear corner corridor fixture, 10/ 15/ 20 adjustable wattages, 1,150/ 1,725/ 2,300 lumens, available in 3500K/ 4000K/ 5000K multi color temperature (CCT), up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.
LED Strip Light is a cost-effective, energy-efficient lighting fixture for surface mount applications such as corridors, stairwells, public rooms, schools, hospitals utility areas, etc. Engineered with stable performance LED engines and the world’s top brand LED driver. Same footprint as traditional 2-lamp strip lights
FEATURES
- LED corner/corridor strip lights
- 5-Year Warranty
- 50,000 Hours Rated Life
- Lens: Frosted Diffuse Polycarbonate Lens
- MCTP: Multi Color Temperature and Power (Selectable Switch Inside Fixture)
ELECTRICAL
- Voltage: 120-277VAC 50/60Hz
- Wattage: 10W/ 15W/ 20W
- Power Factor: >0.98
- Efficacy: 115 LPW
MECHANICAL
- White Finish
- Housing: Heavy Die-Formed Steel, White Powder Coated
- Lens Snaps into the tabs of the Housing Fixture
- Mounting: Surface Mount, Wall Mount
- Operating Temperature: -22ºF -104ºF
- Suitable for Damp Location
LIGHTING
- Dimmable: 0~10V Dimming
- Total Lumens: 1150LM/ 1725LM/ 2300LM
- Color Temperatures: 3500K/ 4000K/ 5000K
- Multi-CCT (Selectable switch inside fixture)
- Color Rendering Index: CRI ≥ 80
APPLICATIONS
- Ideal for architectural lighting solutions, a variety of industrial, commercial and residential applications
RESOURCES AND DOWNLOADS
| SKU | WM-LCL-2FT-20W-MCTP |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | 2' Linear |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 10W/15W/20W |
| Color Rendering Index (CRI) | ≥ 80 |
| Driver Type | 120-277VAC |
| Lumen Output | 1,150/1,725/2,300 |
| Luminaire Efficacy Rating (LER) | 115lm/w |
| L70 Expected Life (hours) | 50,000 |
