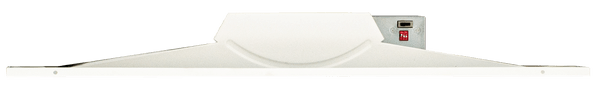

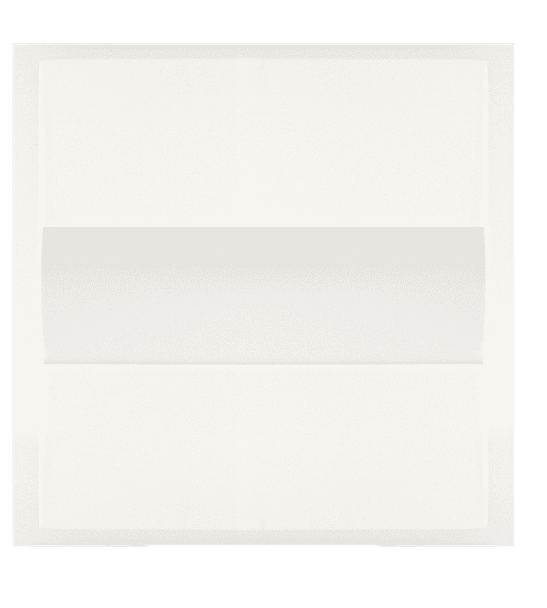

2'x2' LED center basket multi-CCT & wattage troffer lights, 26W/ 32W/ 40W power selectable, 3500K/ 4000K/ 5000K color temperature (CCT), polycarbonate lens, up to 50,000 hours rated life, 5 years limited warranty.
Ideal for hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more.
TECHNICAL SPECIFICATIONS
- Cold-rolled steel, 2.6” thickness
- Input Voltage: AC120V-277V, 50/60Hz
- Power Factor: 0.97
- High efficiency: 125LM/W
- CRI: >80
- THD: <20
- Dimmable: 0~10V dimming
- IP rating: IP20 (Indoor)
- Ambient temperature: -4ºF~122ºF
- Rated life: 50,000 hrs
- 5-year warranty
FEATURES
- Exclusive design lens installs from opening on ends to prevent leakage of light
- Earthquake hooks built into the housing
APPLICATIONS
- Ideal one-for-one replacement of conventional fluorescent troffer fixtures
DIMENSIONS
- 23-3/4" x 23-3/4" x 2-1/2"
RESOURCES AND DOWNLOADS
| SKU | WM-LTRE-2X2-MCTP |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | 2X2 |
| Color Rendering Index (CRI) | >80 |
| Driver Type | AC120V-277V |
| Luminaire Efficacy Rating (LER) | 125 lm/W |
| L70 Expected Life (hours) | 50,000 hrs |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Color Temperature (CCT) | Multi Color Temp |
| Total Input Watts | 26W/32W/40W |
