Description

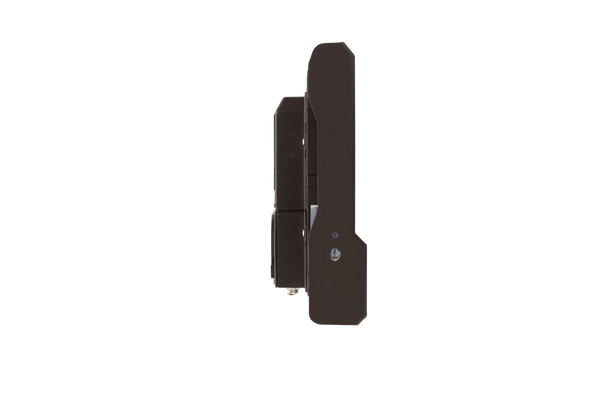

The Westgate LFCO-100W-50K is a high-performance LED flood light from the LFCO Series, designed for powerful and efficient outdoor area lighting. This fixture stands out for its robust construction, impressive efficacy, and versatile mounting options, making it a go-to solution for replacing traditional HID flood lights and wall packs.

Key Features and Benefits

Delivers 14,000 lumens at just 100W for outstanding energy savings
Bright 5000K daylight color temperature enhances visibility and security
Durable die-cast aluminum housing with a sleek dark bronze finish
Type III optic lens for wide, uniform light distribution
IP65 rated for reliable performance in wet locations
0-10V dimmable for flexible lighting control
70,000-hour rated life and backed by a 7-year warranty
Integrated 6KV lightning surge protection for added durability
Easy installation with multiple mounting options (sold separately)

Specifications

Wattage: 100W
Lumens: 14,000lm
Voltage: 120-277VAC
Color Temperature: 5000K
CRI: ≥70
Efficacy: 140 lm/W
Dimensions: 9-1/2"(L) x 10-7/8"(W) x 3-3/8"(H)
Operating Temp: -40°F to 104°F
IP65 Rated, suitable for wet locations
Optical Type: Type III

Common Uses

Perfect for general site lighting, alleys, loading docks, doorways, pathways, parking areas, and anywhere reliable outdoor illumination is needed.

RESOURCES AND DOWNLOADS

Westgate LFCO Series LED Flood Light Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	140° x 80°
CRI:	70
Color Temperature:	5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	Bronze
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	3.375
Item Length (Inch):	9.5
Item Weight (LBS):	5.511556554621939
Item Width (Inch):	10.875
L70 Expected Life (hours):	70,000hr
LED Type:	Philips Lumileds Lexeon high ﬂux LED
Lens Material:	TIR optic lens - TYPE III
Lumen Output:	14000
Operating Temperature:	-40°F to 104°F
Power Factor:	0.9
Ships From:	CA
THD:	<20%
Voltage:	120-277V
Wattage:	100W
