Description

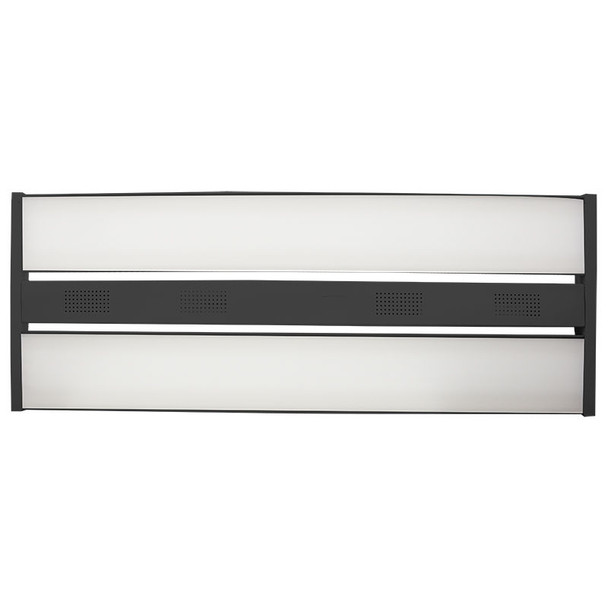

The Westgate LLHB4 Series Linear High Bay is a versatile, power and CCT adjustable fixture designed for demanding industrial and commercial spaces. This 4th generation high bay offers exceptional efficiency, durability, and flexibility, making it a standout in Westgate's lineup.

Key Features and Benefits

Selectable wattage (80W, 110W, 150W) and color temperature (3500K, 4000K, 5000K) for tailored lighting
High efficacy at 125 lumens per watt for energy savings
0-10V dimming for precise light control
Durable steel housing with polycarbonate lens for longevity
Wide beam angle for broad, even illumination
Rated for 50,000 hours of maintenance-free operation
Surge protection and high flame retardant construction
Suitable for damp locations and a wide temperature range
Backed by a 5-year warranty for peace of mind

Specifications

Lumen output: 10,000lm (80W), 13,750lm (110W), 18,750lm (150W)
Wattage: 80W | 110W | 150W
Voltage: 120-277V AC, 50/60Hz
Color temperature: 3500K | 4000K | 5000K
CRI: >80
Dimensions: 24.25" L x 17.75" W x 2" H
Power factor: >0.95
Operating temperature: -4°F to 131°F
Damp location rated

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, grocery stores, gymnasiums, and other large indoor spaces with mounting heights from 10ft to 40ft. Perfect for replacing HID and fluorescent systems.

RESOURCES AND DOWNLOADS

Westgate LLHB4 Series Linear High Bay Spec Sheet

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	3500K\|4000K\|5000K
Compliance & Warranty:	Damp Location\|5 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	Black
Housing Material:	Aluminum
Item Height (Inch):	2
Item Length (Inch):	24.2
Item Weight (LBS):	11
Item Width (Inch):	17.7
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate lens
Lumen Output:	18750\|10000\|13750
Operating Temperature:	-4°F to 131°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	80W\|110W\|150W
