High Lumen LED NON-CUTOFF Wall Packs

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

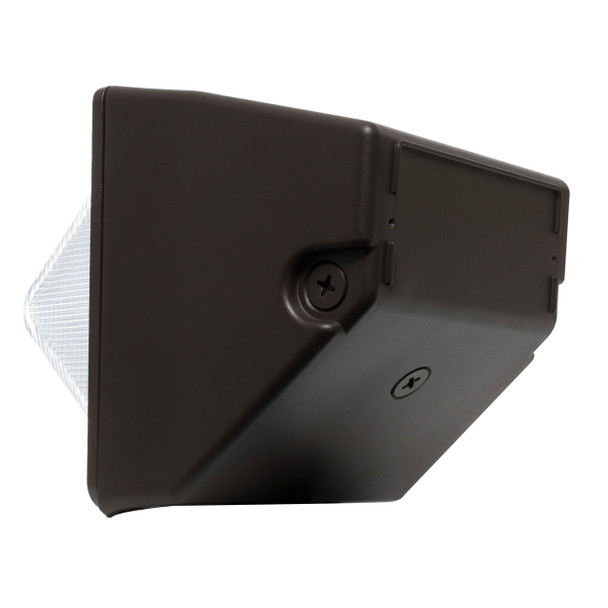

High Lumen LED NON-CUTOFF Wall Packs

$45.70
MSRP: $51.45
You save $ 5.75 (11%)
  • SKU: WM-WML-HL-30W-40K
  • MPN: WML-HL-30W-40K

Quick Overview

High Lumen LED NON-CUTOFF Wall Packs (wattage: 30W; lumens: 4200LM; CCT: 4000K; voltage: 120-277V; finish: Bronze)

UL Listed
DLC Standard
WET RATED
IP54
In Stock & Ready To Ship!
Current Stock:Only left: 1
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate WML-HL Series is a compact, high-performance LED outdoor wall pack designed for dependable perimeter and security illumination. Built for commercial exterior applications, this 30W model delivers strong light output with efficient operation and rugged construction. It is a key solution in Westgate's wall pack lineup for replacing traditional HID fixtures.

Key Features and Benefits

  • High-output performance delivers bright, uniform illumination for safer outdoor spaces.
  • 0-10V dimming capability supports energy-saving controls and flexible light levels.
  • Rugged die-cast aluminum body with dark bronze powder coat helps withstand demanding outdoor environments.
  • Prismatic borosilicate glass lens improves durability and optical performance.
  • Wet-location and IP65 rated design supports reliable operation in exposed weather conditions.
  • Backed by a 7-year warranty for long-term peace of mind.

Specifications

  • Lumen Output: 4200
  • Wattage: 30W
  • Voltage: 120-277V
  • Frequency: 50/60
  • Color Temperature: 4000K
  • CRI: 80+
  • Efficacy: 140 lm/W
  • Power Factor: >0.95
  • Input Current: 0.52A
  • Rated Life: 70000 hours
  • BUG Rating: B1-U3-G3
  • IP Rating: IP65
  • Operating Temperature: -4°F to 104°F
  • Mounting: Wall mount
  • Dimensions: 8 1/2"(W) x 9"(H) x 7 1/4"(D)

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Commonly used to retrofit HID wall packs in commercial and industrial exterior settings.
