The Westgate CMC6-MCTP-DD Series is a versatile 6" cylinder pendant and ceiling light, designed for commercial indoor applications. This fixture stands out with its selectable color temperature and wattage, allowing you to tailor the light output and ambiance to your specific needs. Its robust aluminum construction and clear glass lens ensure durability and a modern look, making it a valuable addition to any lighting project.

Key Features and Benefits

Selectable multi-CCT (3000K, 4000K, 5000K) and multi-wattage (21W, 28W, 35W) for ultimate flexibility
Adjustable lumen output up to 2625 lumens
Dual dimming options: Triac dimmable at 120V and 0-10V dimming at 120-277V
High efficacy at 75 LPW and CRI ≥ 80 for excellent color rendering
Durable aluminum housing with clear glass lens
Long 70,000-hour rated life for reduced maintenance
IP40 rated for damp locations
Available in white or black finishes
7-year warranty for peace of mind

Specifications

Wattage: 21W | 28W | 35W
Lumens: 1575lm | 2100lm | 2625lm
Voltage: 120-277V
Color Temperature: 3000K | 4000K | 5000K
CRI: ≥80
Beam Angle: 25°
Power Factor: >0.90
THD: <20%

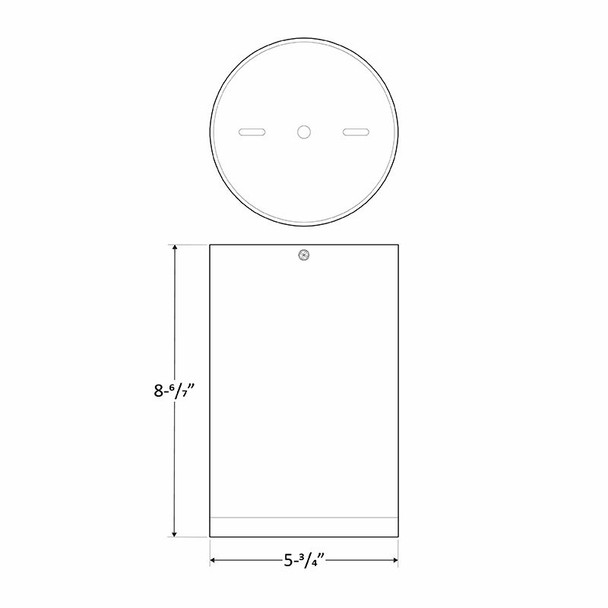

Dimensions: 8 6/7” (H) x 5 3/4” (W) x 6” (D)

Common Uses

Ideal for commercial interiors, retail spaces, offices, corridors, hospitality venues, and any setting requiring flexible, high-quality cylinder lighting.

RESOURCES AND DOWNLOADS

Westgate CMC6-MCTP-DD Series Spec Sheet

Details

Beam Angle:	60°
CRI:	90\|80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|ETL Listed
Dimming Type:	0-10V\|Phase
Efficacy:	80LM/W
Finish / Color:	White\|Black
Housing Material:	Aluminum
IP Rating:	IP20
Item Height (Inch):	5.7
Item Length (Inch):	5.7
Item Width (Inch):	12
L70 Expected Life (hours):	50,000hr
LED Type:	Hongli COB
Lens Material:	Glass
Lumen Output:	3600\|1575\|2100\|2625
Operating Temperature:	-4°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT
THD:	<20%
Voltage:	120-277V
Wattage:	27W\|36W\|45W\|21W\|28W\|35W
