HIGH-MAST 60W To 200W, 277-480V, Specify 3 Watt Stops, Specify Cct, Specify Bk Or Gy

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

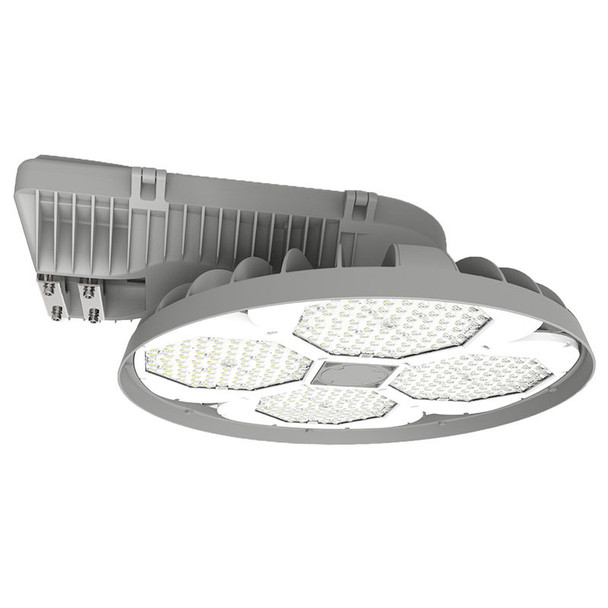

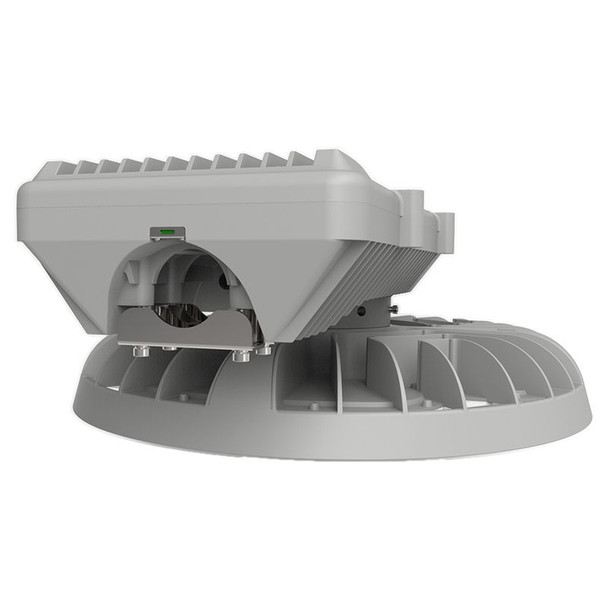

HIGH-MAST 60W To 200W, 277-480V, Specify 3 Watt Stops, Specify Cct, Specify Bk Or Gy

$1,027.00
MSRP: $1,141.78
You save $ 114.78 (10%)
  • SKU: WM-HML-60-200W-XXK-CLR-480V
  • MPN: HML-60-200W-XXK-CLR-480V

Quick Overview

HIGH-MAST 60W To 200W, 277-480V, Specify 3 Watt Stops, Specify Cct, Specify Bk Or Gy (voltage: 480V; finish: Black)

IP65
Availability: 1 business day
Unavailable
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Introducing our advanced High-Lumen LED Stadium Flood Light, featuring selectable color temperatures ranging from 4000K to 5700K and adjustable wattage between 60W and 200W. This versatile lighting solution is perfect for large outdoor areas, offering unparalleled performance and efficiency.

Key Features and Benefits

  • Durable Die-Cast Aluminum Housing with Powder Coat Finish (Available in Black and Gray)
  • High-Efficiency SMD5050 LEDs
  • Wattage Customization with 3 Adjustable Stops
  • Comprehensive 7-year Warranty
  • Impact-Resistant Prismatic Polycarbonate Lens
  • Supports High Voltage: 277-480V AC 60Hz
  • Exceptional Power Factor: >0.90
  • Enhanced Efficacy: 145 Lumens per Watt
  • Wide Operating Temperature: -40°F to 113°F
  • IP65 Rating: Suitable for Wet Locations
  • Integrated 0-10V Dimming Capability
  • Impressive Total Lumen Output: 290000LM
  • Superior Color Rendering Index: CRI ≥ 70
  • Extended Rated Life: 70,000 Hours
  • Optimized Beam Angle: 155 x 155°

Specifications

  • Voltage: 277-480V AC 60Hz
  • Wattage: 60W - 200W with 3 Specifiable Watt Stops
  • Power Factor: >0.90
  • Efficacy: 145LM/W
  • Operating Temperature: -40°F to 113°F
  • IP Rating: IP65
  • Dimming: 0-10V
  • Total Lumens: 290000LM
  • Color Temperatures: 4000K, 4500K, 5000K, 5700K
  • Color Rendering Index: CRI ≥ 70
  • Rated Life: 70,000 Hours
  • Beam Angle: 155 x 155°

Applications

Ideal for stadium lighting, sports fields, parking lots, docks, railway and container yards, architectural lighting, industrial and commercial exterior lighting, trade shows, exhibitions, port container facilities, highways and interchanges, rail yards, correctional facilities, large area industrial, military installations, airports, truck stops, toll plazas, square plazas, shipyards, high mast and contour lighting.

RESOURCES AND DOWNLOADS

LED Stadium Flood Light Spec Sheet
