Description

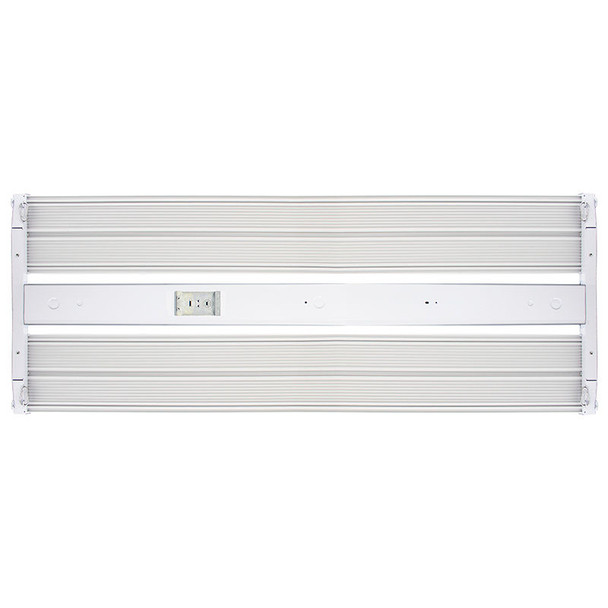

Compact industrial lighting fixture with selectable 4000K/5000K color temperatures, adjustable 50-100W power, and 6000-12000 lumens output.

Key Features and Benefits

High quality LED chips for efficiency and heat dissipation.
Polycarbonate lens with high flame retardant point.
50,000 hours rated life and 5-year warranty.
Multi-power adjustable via switch on the driver.
480V AC/50~60 Hz voltage with >0.95 power factor.
120 lumens per watt efficacy.
Pre-installed single-pin audio jack socket for motion sensors.
Includes surge protector and steel housing.
V-hooks and aluminum LED board for mounting.
Suitable for damp locations with a wide beam angle.

Specifications

Total lumens: 6000-12000LM
Wattage: 50/80/100W
Voltage: 480V
Color Temperatures: 4000K and 5000K
Color Rendering Index: >80
Operating Temperature: -4°F ~ 131°F

Common Uses

Ideal for replacement of conventional lighting systems in manufacturing, warehousing, and other large indoor spaces with mounting heights from 10ft. to 40ft. Can be surface mounted.

RESOURCES AND DOWNLOADS

Industrial Lighting Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	H98.0 V100.1°
CRI:	80
Color Temperature:	4000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	White
Housing Material:	Steel
IP Rating:	IP20
Item Height (Inch):	2
Item Length (Inch):	24.2
Item Weight (LBS):	7.3
Item Width (Inch):	12.4
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate lens
Lumen Output:	12000\|6000
Operating Temperature:	-30-+40
Power Factor:	>0.92
Ships From:	CA
Special Features:	Selectable Wattage
THD:	<19
Voltage:	480V
Wattage:	50W\|80W\|100W
