Description

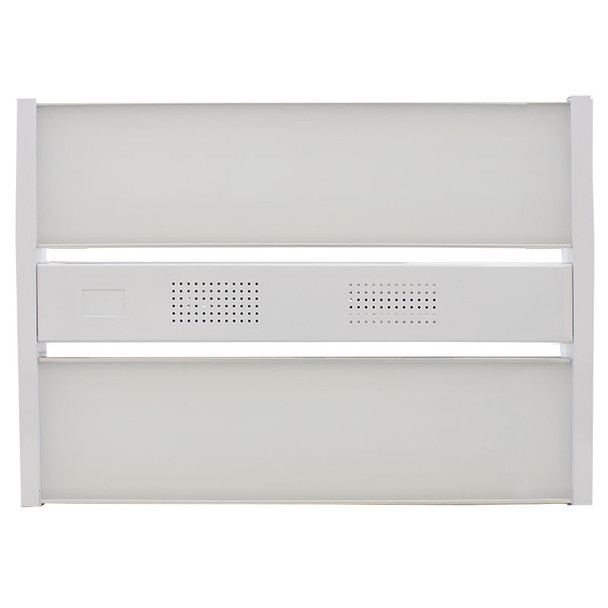

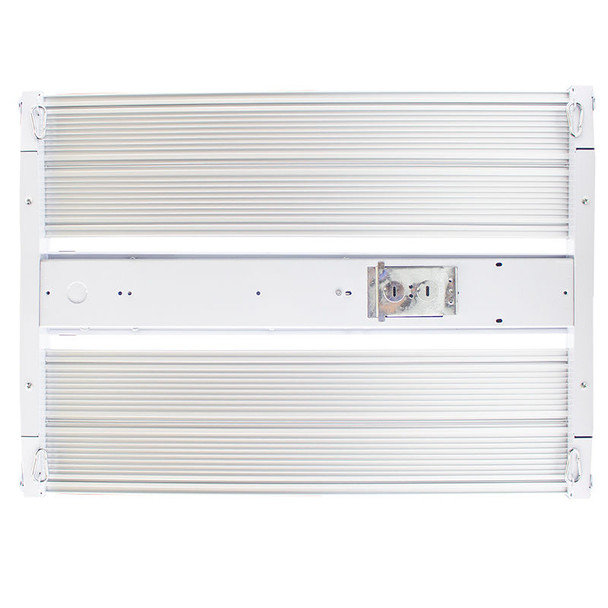

100W Industrial Lighting fixture with selectable color temperatures of 4000K and 5000K, adjustable lumen outputs up to 12000LM.

Key Features and Benefits

High Quality LED Chips for Efficiency, Heat Dissipation, and Lumen Maintenance
Polycarbonate Lens with High Flame Retardant Point
50,000 Hours Rated Life with 5-Year Warranty
Multi-Power Switch on Driver with Power Factor >0.95
Efficacy of 120 LPW and 0~10V Dimmable
Pre-installed Audio Jack Socket for Motion Sensors
Steel Housing with 24 Gauge Thickness
Suitable for Damp Locations

Specifications

Wattage: 50/80/100W
Voltage: 120~277VAC/50~60 Hz
Lumens: 6000LM (50W), 9600LM (80W), 12000LM (100W)
Color Temperatures: 4000K and 5000K
Color Rendering Index: >80
Operating Temperature: -4°F ~ 131°F

Common Uses

Ideal for replacement of conventional lighting systems in manufacturing, warehousing, and other large indoor spaces with mounting heights from 10ft. to 40ft.

RESOURCES AND DOWNLOADS

Industrial Lighting Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	H98.0 V100.1°
CRI:	80
Color Temperature:	4000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	White
Housing Material:	Steel
IP Rating:	IP20
Item Height (Inch):	2
Item Length (Inch):	24.2
Item Weight (LBS):	7.3
Item Width (Inch):	12.4
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate lens
Lumen Output:	12000
Operating Temperature:	-30-+40
Power Factor:	>0.92
Ships From:	CA
THD:	<19
Voltage:	120-277V
Wattage:	50W\|80W\|100W
