Description

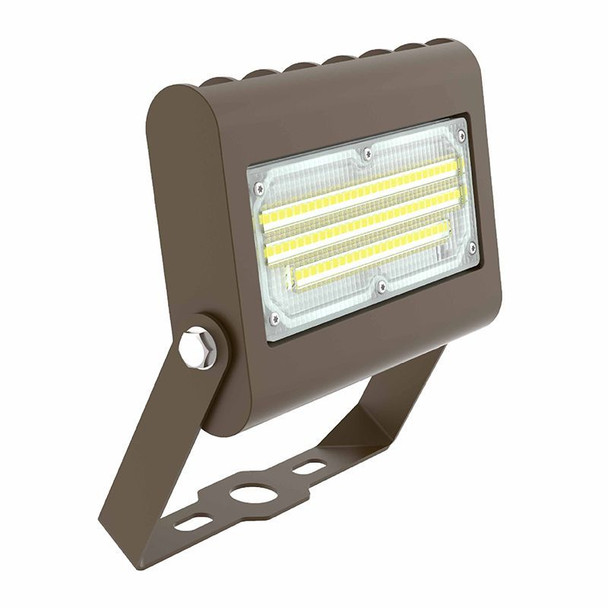

This X-Generation Small Flood Light is an exceptional choice for a variety of outdoor lighting applications. Designed with a versatile U bracket, it offers selectable wattages of 10W, 15W, 20W, and 30W, delivering a maximum of 4,080 lumens. Available in both 3000K and 5000K color temperatures (CCT), this floodlight ensures optimal brightness and color rendering.

Perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, this fixture is an ideal replacement for existing HID flood lights and wall packs.

FEATURES

DLC Premium & LED High-Lumen Flood lights
Solid State Lighting Technology for Long Life
No Maintenance Needed and High-Efficiency
70,000 Hours Rated Life
7-Year Warranty
Optic Lens Type: III
Multi-Power - The Switch is on the Bottom of the Fixture

ELECTRICAL

Voltage: 120~277V AC/50~60 Hz
Wattage: Selectable Wattages (10W/ 15W/ 20W/ 30W)
Power Factor: >0.9
Efficacy: 130 LPW

MECHANICAL

Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze and White Finish)
LED: Philips Lumileds Luxeon 2835 High Flux LED
Solid State Lighting technology for long life, no Maintenance needed and High-Efficiency
High Conductive Aluminum LED Board
270° Adjustable Yoke Mount
IP Rating: IP65
Operating Temperature: -40°F to 104°F
Suitable for Wet Locations

LIGHTING

Dimming: 0~10V Dimmable
Optic Lens Type: III
Cord type: 13” #18 AWG stranded wires
Total Lumens: 4080LM Max.
Color Temperature: 3000K/5000K
Color Rendering Index: ≥ 82
Beam Angle: 120°X 90°

RESOURCES AND DOWNLOADS

X-Gen. Small Flood Light Incl. (w/ U Bracket) Power & CCT's Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B2-U0-G1
Beam Angle:	90°\|120°\|90° x 120°
CRI:	70
Color Temperature:	3000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Efficacy:	130LM/W
Finish / Color:	Bronze
Fixture Size:	8.5"x7.5"x2"
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	2
Item Length (Inch):	8.5
Item Weight (LBS):	2.403
Item Width (Inch):	7.5
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Optic Lens Type: III
Light Source:	LED
Lumen Output:	4080
Operating Temperature:	-40℉~+104℉
Power Factor:	>0. 9
Ships From:	CA
Special Features:	Selectable Wattage
THD:	<20%
Voltage:	120-277V
Wattage:	10W\|15W\|20W\|30W
