Max Flood 3CCT 15/25/35W Digital Beam Angel U Bracket Photocell Brz

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

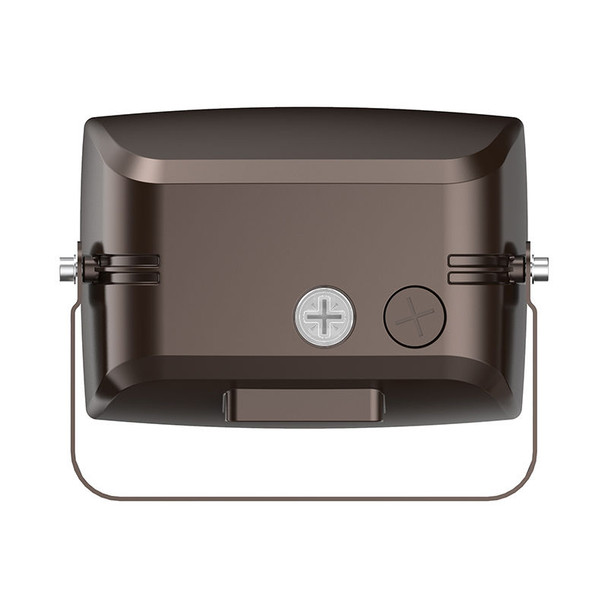

Max Flood 3CCT 15/25/35W Digital Beam Angel U Bracket Photocell Brz

$67.74
MSRP: $76.78
You save $ 9.04 (12%)
  • SKU: WM-LF4MAX-SM-15-35W-MCTPB-TR-P
  • MPN: LF4MAX-SM-15-35W-MCTPB-TR-P

Quick Overview

Max Flood 3CCT 15/25/35W Digital Beam Angel U Bracket Photocell Brz (wattage: 15W/25W/35W; lumens: 4900; efficacy: 140LM/W; CCT: 30K/40K/50K; voltage: AC120-277V)

IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 73
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Compact round-back floodlight with selectable color temperature (3000K/4000K/5000K) and adjustable lumen output (2100LM/3500LM/4900LM).

Key Features and Benefits

  • Selectable color temperature: 3000K/4000K/5000K
  • Adjustable lumen output: 2100LM/3500LM/4900LM
  • High efficacy: 140 LPW
  • Long lifespan: 70,000 hours
  • Durable die-cast aluminum housing with powder coat finish
  • Suitable for wet locations with IP65 rating
  • 270° adjustable yoke mount with photocell and disconnect switch
  • 0-10V dimmable and multi-CCT & multi-power switches
  • 6KV lightning surge protection
  • 7-year warranty

Specifications

  • Voltage: 120~277VAC/50~60 Hz
  • Wattage: 15W/25W/35W
  • Color Rendering Index: ≥ 70
  • Beam Angle: 135°x125°/120°x120°/90°x90°
  • Operating Temperature: -40°F to 104°F

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Replaces existing HID floodlights and wall packs.
