Max Flood 3CCT 200/240/300W Digital Beam Angel U Bracket Photocell Brz

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Max Flood 3CCT 200/240/300W Digital Beam Angel U Bracket Photocell Brz

$287.74
MSRP: $323.78
You save $ 36.04 (11%)
  • SKU: WM-LF4MAX-XL-200-300W-MCTPB-TR-P
  • MPN: LF4MAX-XL-200-300W-MCTPB-TR-P

Quick Overview

Max Flood 3CCT 200/240/300W Digital Beam Angel U Bracket Photocell Brz (wattage: 200W/240W/300W; lumens: 140LM/W; efficacy: 140LM/W; CCT: 30K/40K/50K; voltage: AC120-277V)

IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 15
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

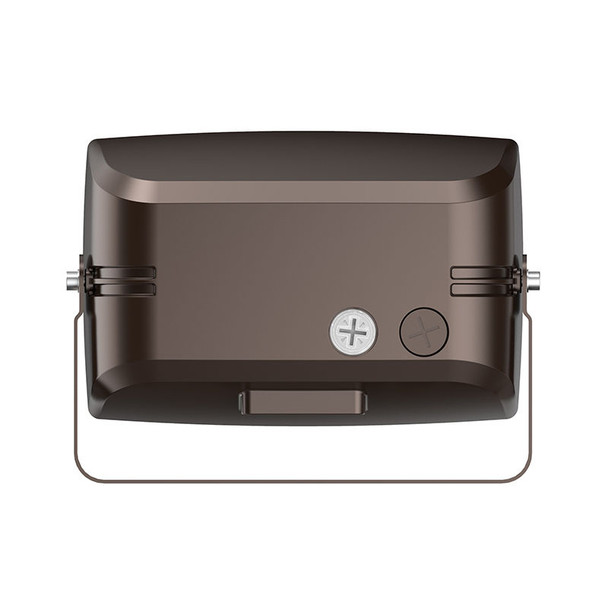

Round-back floodlight with U-bracket, size 14.9"x16.35"x6.74", selectable color temperatures and adjustable lumen outputs.

Key Features and Benefits

  • Multi-CCT & Multi-Power with switches at the bottom of the fixture.
  • Adjustable beam angles: 135°x125°, 120°x120°, 90°x90°.
  • 70,000 hours rated life and efficacy of 140 LPW.
  • Photocell included with a disconnect switch and 6KV lightning surge protection.
  • Die-cast aluminum housing with powder coat finish.
  • Suitable for wet locations with an IP65 rating.
  • Operating temperature: -40°F to 104°F.
  • 7-year warranty.

Specifications

  • Voltage: 120~277VAC/50~60 Hz
  • Wattage: 200W/240W/300W
  • Power Factor: >0.9
  • Total Lumens: 28000LM/33600LM/42000LM
  • Color Temperature: 3000K/4000K/5000K
  • Color Rendering Index: ≥70

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Also suitable for replacing existing HID flood lights or wall packs.
