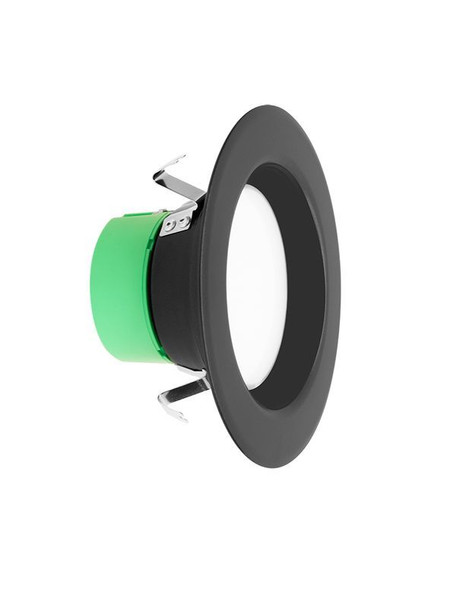

4-inch LED smooth recessed trim series, 10 watts, 700 lumens, available in 2700K/ 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, up to 35,000 hours rated life, suitable for damp location, 5 years limited warranty.
FEATURES
- 4" Smooth Recessed Trim
- Multi CCT (Selectable Switch on the Back of the Driver)
- Isolated Driver for Improved Thermal Management
- 5-Year Warranty
- Spun Aluminum with White Powder Coat Finish
ELECTRICAL
- Voltage: 120V AC
- Output Voltage: 36VDC
- Power Factor: >0.90
- Wattage: 10W
- Efficacy: 70 LPW
- Total Harmonic Distortion: ≤15 %
MECHANICAL
- Spun Aluminum with White Powder Coat Finish
- Includes 8" Medium Base E-26 Screw-in Adapter That Fits any Standard Incandescent Down-light
- Maximum Ambient Temperature:104°F
- Fits in Standard 4" Recessed Housings
- Rated life: 50,000 hrs
- Damp Location
LIGHTING
- Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
- LED: Epistar Chip (COB) and Driver - 35,000 hours Design Life
- Can Rotate after Installation to Align
- Optics: White Translucent Acrylic Lens
- Total Lumens: 700 LM
- Multi Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/ 5000K
- Multi CCT (Selectable Switch on the Back of the Driver)
- Color Rendering Index: CRI ≥ 90
APPLICATIONS
- LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.
RESOURCES AND DOWNLOADS
SKU | WM-RDL4-ST-MCT5-BK |
---|---|
Weight | 10.00 LBS |
Light Source | LED |
Driver Type | 120V AC |
Lumen Output | 700lm |
Luminaire Efficacy Rating (LER) | 70 LPW |
L70 Expected Life (hours) | 35,000hrs |
Color Temperature (CCT) | MCT |
Total Input Watts | 10W |
