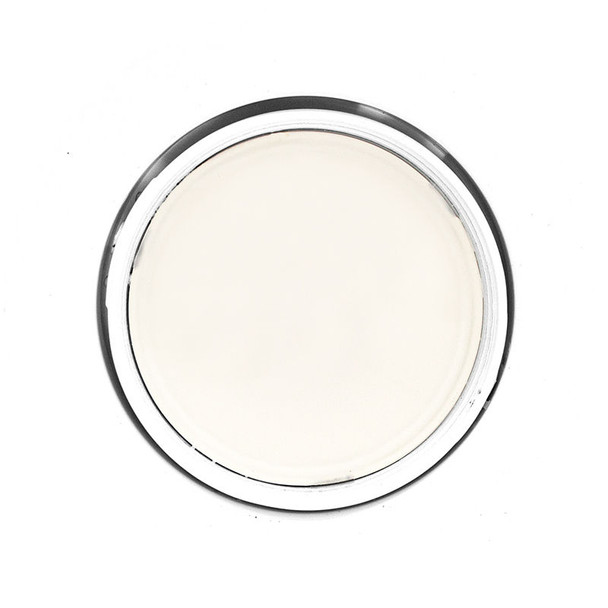

RDL Series 4-Inch 8 Watt LED Recessed Trim - CCT Adjustable

4-inch RDL series LED recessed trim series, 8 watts, 650-850 lumens, spun aluminum with white powder coat finish, available in 2700K/ 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.

LED DOWNLIGHTS (SMOOTH TRIM) - 4” ROUND Ideal for New as well as old residential and commercial constructions.

FEATURES

• 4” Smooth Recessed Trim
• Multi CCT (Selectable Switch on the Back of the driver )
• Isolated Driver for Improved Thermal Management
• Can Rotate after Installation to Align
• 5-Year Warranty
• Trim Ring: Integrated Spun Aluminum White Powder Coat Finish
• Tilts to 45º

ELECTRICAL

• Voltage: 120V AC
• Output Voltage: 36VDC
• Power Factor: >0.90
• Wattage: 8W
• Efficacy: 81 LPW
• Total Harmonic Distortion: ≤15 %

MECHANICAL

• Spun Aluminum with White Powder Coat Finish
• Includes 8” Medium Base E-26 Screw-in Adapter That Fits any Standard Incandescent Down-light
• Maximum Ambient Temperature: 104°F
• Fits in Standard 4” Recessed Housings
• Rated life: 50,000 hrs
• Damp Location

MECHANICAL

• Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
• LED: Epistar Chip (COB) and Driver—35,000-hour Design Life
• Can Rotate after Installation to Align
• Adjustable Lens” & “Tilts 45°
• Optics: White Translucent Acrylic Lens
• Total Lumens: 850LM Max.
• Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/5000K
• Multi CCT (Selectable Switch on the Back of the driver )
• Color Rendering Index: CRI ≥ 90

APPLICATIONS

• LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets,storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
