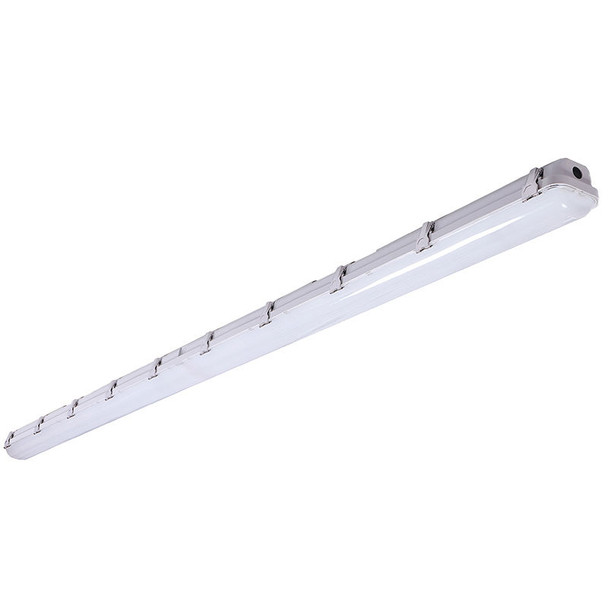

8Ft. Builder Series Linear Vapor-Tight Fixture

The 8Ft. Builder Series Linear Vapor-Tight Fixture is engineered to deliver outstanding performance while meeting the toughest industrial, commercial, and agricultural demands. With selectable color temperature options (3500K, 4000K, 5000K) and adjustable wattage settings (45W, 55W, 65W), this lighting fixture satisfies a wide range of lighting requirements with a high efficacy of 140lm/W.

Key Features and Benefits

Selectable Color Temperature: Choose from 3500K, 4000K, or 5000K to create the perfect lighting environment.
Adjustable Wattage: Tailor the light output to your needs with adjustable settings of 45W, 55W, and 65W.
High Efficacy: Producing an impressive 140 lumens per watt, this fixture maximizes energy efficiency.
Durable and Vapor-Tight Design: Built to withstand harsh environments, ensuring it remains functional and reliable.
Long Lifespan: Minimal maintenance required, thanks to its extended operational life.
Energy-Efficient and Cost-Saving: Reduce energy consumption and lower operational costs.

Specifications

Color Temperature: 3500K, 4000K, 5000K
Wattage: 45W, 55W, 65W
Efficacy: 140lm/W

Common Uses

This fixture is ideal for various applications including industrial, commercial, and agricultural settings, especially where a durable and vapor-tight lighting solution is required.

RESOURCES AND DOWNLOADS

Linear Vapor-Tight Fixture Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	120°
CRI:	80
Certifications:	ETL Listed, NSF Listed
Color Temperature:	3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|ETL Listed
Country of Origin:	CAMBODIA
Dimming Type:	0-10V
Efficacy:	140LM/W
Finish / Color:	White\|Gray
Housing Material:	Polycarbonate
IP Rating:	IP66
Item Height (Inch):	3.35
Item Length (Inch):	92.91
Item Weight (LBS):	9.26
Item Width (Inch):	4.25
L70 Expected Life (hours):	50,000hr\|50000
LED Type:	SEOUL LEDs
Lens Material:	Polycarbonate Lens
Lumen Output:	9100\|6300\|7700
Operating Temperature:	-40°F to 104°F
Power Factor:	>0.90
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|NSF Rated
THD:	<20%
Wattage:	45W\|55W\|65W
Wet Rated:	True
