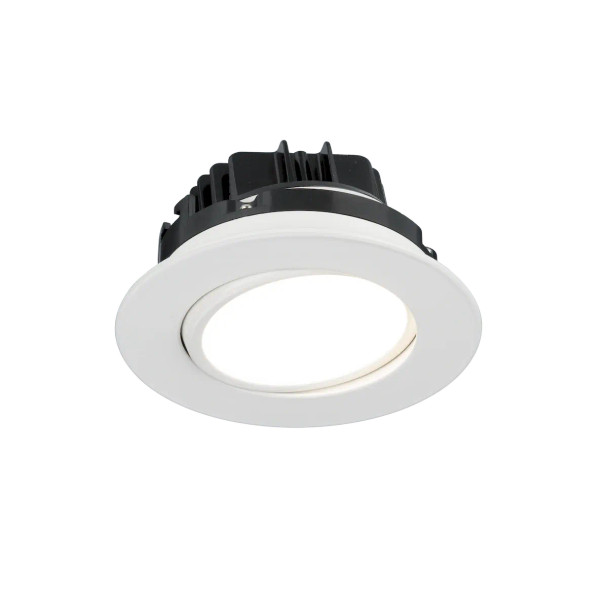

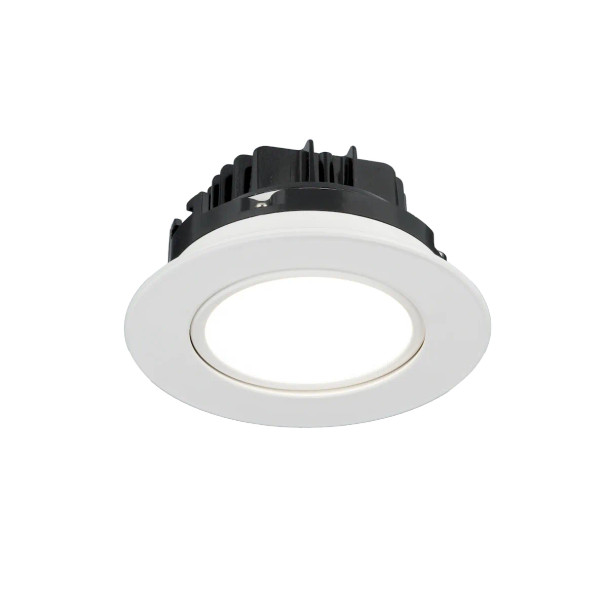

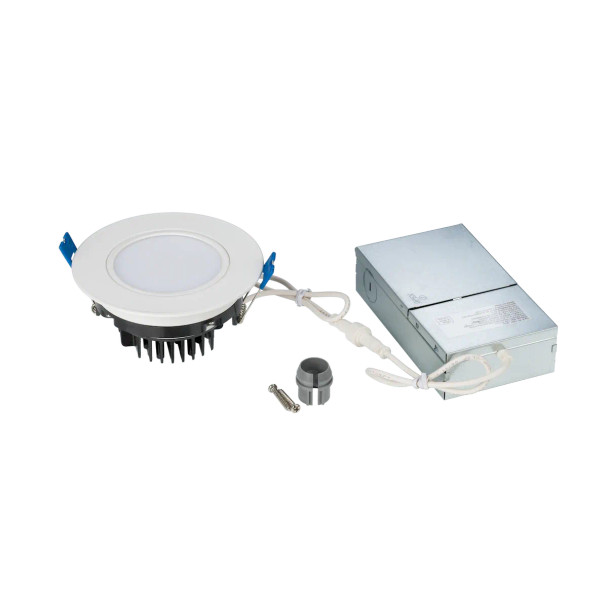

American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White

By American Lighting
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White
American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

American Lighting DIP 360 Gimbal Downlight, 4", 14W, 120V, 5CCT, White

$33.40
  • SKU: AL-PLX-DIP-14-120-5CCT-4-WH
  • MPN: PLX-DIP-14-120-5CCT-4-WH

Quick Overview

4" recessed LED gimbal downlight with 360° adjustability, selectable 2700K–5000K CCT, 14W power, up to 1000 lumens, TRIAC dimming, and wet-location, IC-rated performance for residential and commercial spaces.

UL Listed
ETL Listed
Energy Star
JA8 Compliant
WET RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The American Lighting DIP 360 Gimbal is a versatile recessed downlight designed for directional accent and general illumination in one compact fixture. As part of the DIP gimbal series, it combines field-selectable color temperature with full aiming flexibility, making it a practical choice for both new construction and remodel projects.

Key Features and Benefits

  • True 360° gimbal design allows precise light aiming for task, accent, or wall-wash effects.
  • Built-in 5CCT selection (2700K/3000K/3500K/4000K/5000K) simplifies inventory and on-site tuning.
  • Smooth TRIAC dimming supports broad light-level control for comfort and energy savings.
  • Wet-location and Type IC rated construction supports use in insulated ceilings and moisture-prone areas.
  • Long 50,000-hour rated life reduces maintenance frequency over time.
  • Backed by a 5-year limited warranty and certified to cETLus, Energy Star, FCC, and JA8 standards.

Specifications

  • Lumen Output: 880|910|930|1000|960
  • Wattage: 14W
  • Voltage: 120V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 90
  • Beam Angle: 110°
  • Dimming Type: Phase (TRIAC, 10-100%)
  • Rated Life (70 Hours): 50000
  • Operating Temperature: -20°C to 40°C
  • Finish / Color: White
  • Mounting: Recessed with spring-loaded clips

Common Uses

Ideal for residential and light commercial interiors such as kitchens, living areas, hallways, hospitality spaces, and covered wet-location applications where adjustable beam direction and selectable CCT are important.

RESOURCES AND DOWNLOADS

American Lighting DIP 360 Gimbal Downlight Spec Sheet
