American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI

By American Lighting
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI
American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

American Lighting DIP 360 Gimbal Downlight, 6", White Finish, 120V, 5CCT, 90 CRI

$41.45
  • SKU: AL-PLX-DIP-20-120-5CCT-6-WH
  • MPN: PLX-DIP-20-120-5CCT-6-WH

Quick Overview

6" recessed LED gimbal downlight with 360° adjustability, selectable 2700K-5000K CCT, 20W power, up to 1500 lumens, TRIAC dimming, and wet-location, IC-rated performance for residential and commercial spaces.

ETL Listed
Energy Star
JA8 Compliant
WET RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

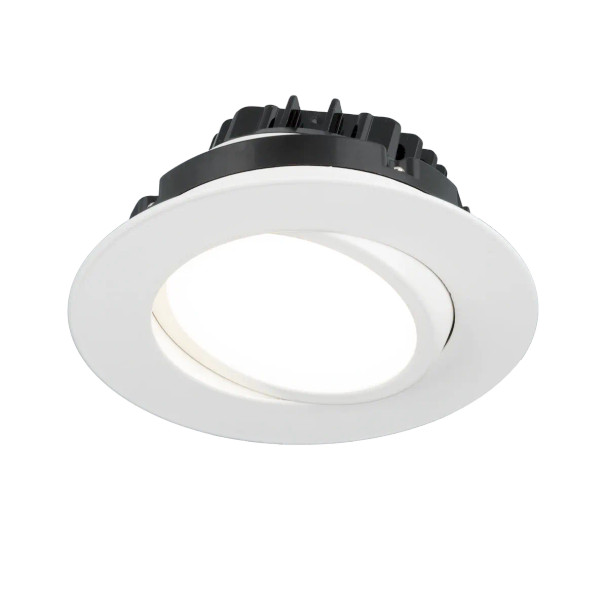

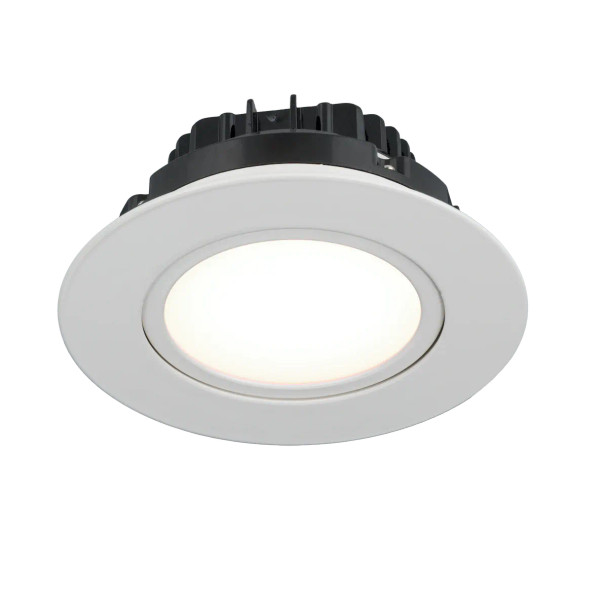

The American Lighting DIP 360 Gimbal is a versatile recessed downlight designed for directional accent and general illumination in one compact fixture. As part of the DIP gimbal series, it combines field-selectable color temperature with smooth aiming flexibility, making it a practical choice for both new construction and remodel projects.

Key Features and Benefits

  • 360° gimbal aiming helps direct light exactly where it is needed for task, accent, or ambient lighting.
  • Selectable 5CCT tuning (2700K to 5000K) allows quick in-field color adjustment to match changing interiors.
  • TRIAC dimming compatibility supports smooth light control for comfort and energy savings.
  • Type IC construction and wet-location listing expand installation options in insulated ceilings and moisture-prone areas.
  • ENERGY STAR and JA8 compliant design supports code-driven and efficiency-focused projects.
  • Backed by a 5-year limited warranty for added long-term confidence.

Specifications

  • Size: 6"
  • Input Voltage: 120V AC
  • Power: 20W
  • Lumen Output: 1320|1365|1395|1500|1440
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 90+
  • Beam Angle: 110°
  • Operating Temperature: -20°C to 40°C
  • Rated Life (L70): 50000 hours
  • Mounting: Recessed with spring-loaded clips
  • Finish: White

Common Uses

Ideal for residential living areas, kitchens, hallways, bathrooms, and covered outdoor or wet-location applications, as well as light commercial hospitality and retail spaces requiring adjustable recessed lighting.

RESOURCES AND DOWNLOADS

American Lighting DIP 360 Gimbal Downlight Spec Sheet
