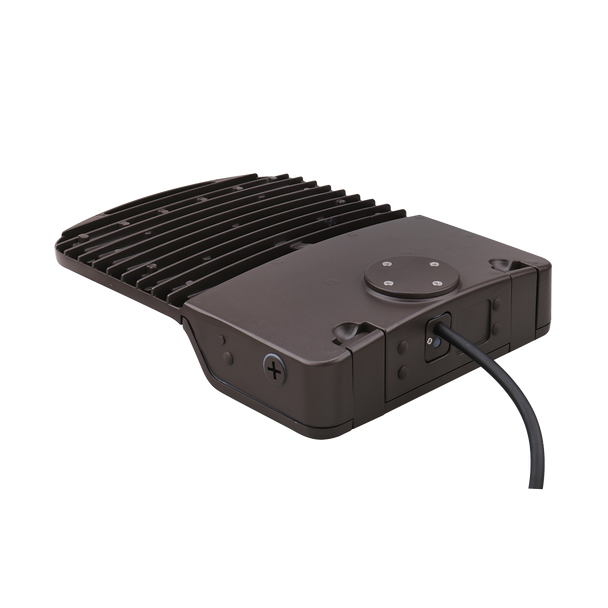

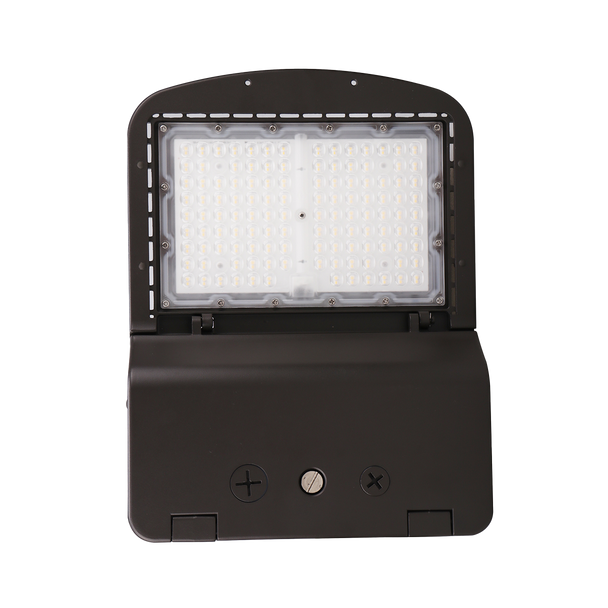

EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V

By Eiko Global
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 100/80/60W, 4000K, Type V, 120-277V

Now: $84.62
Reg: $130.70
Sale 35%
You save $ 46.08
  • SKU: E-AAL1-PS100-40T5-U
  • MPN: AAL1-PS100-40T5-U

Quick Overview

EiKO AAL1 architectural LED area light with PowerSet 100/80/60W, 14,000/11,200/8,400 lumens, Type V distribution, 4000K CCT, 0-10V dimming, and IP65/IK08 durability for parking lots, roadways, and site lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a controls-ready architectural LED area light platform built for demanding outdoor site and roadway applications. This configured model delivers selectable power levels with a high-efficacy optical system and robust environmental protection, making it a dependable choice across commercial and municipal projects.

Key Features and Benefits

  • PowerSet flexibility enables 100W, 80W, or 60W operation from one fixture for easier field tuning.
  • Controls-ready design with screw-in receptacle simplifies future sensor or networked control upgrades.
  • Rugged outdoor construction with IP65 ingress protection and IK08 impact resistance supports long-term reliability.
  • DLC Premium qualification helps maximize rebate eligibility and energy performance goals.
  • 0-10V dim-to-off capability supports advanced lighting control strategies and additional energy savings.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 14000/11200/8400
  • Wattage: 100/80/60W
  • Voltage: 120-277V
  • Color Temperature: 4000K
  • CRI: 80+
  • Distribution Type: Type V
  • Efficacy: 140 lm/W
  • Rated Life (L70): 100000 hours
  • Power Factor: >0.9
  • THD: <20%
  • Dimming: 0-10V, dim-to-off
  • Operating Temperature: -40b0C to 50b0C
  • Housing: Die-cast aluminum
  • Lens: UV-resistant polycarbonate
  • Finish: Bronze powder coat
  • IP/IK Rating: IP65 / IK08

Common Uses

Ideal for parking areas, automotive dealerships, campuses, streetscapes, airports, building facades, entryways, signage, and general area security lighting where high output and durable outdoor performance are required.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
