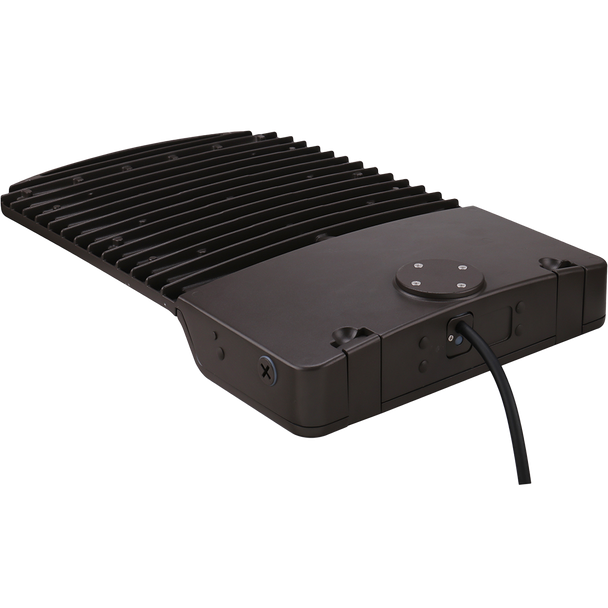

EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V

By Eiko Global
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V
EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 200W, 4000K, Type V, 120-277V

Now: $84.62
Reg: $192.30
Sale 56%
You save $ 107.68
  • SKU: E-AAL1-200-40T5-U
  • MPN: AAL1-200-40T5-U

Quick Overview

EiKO AAL1 architectural LED area light delivers 28,000 lumens at 200W with Type V distribution, 4000K CCT, 0-10V dimming, and IP65/IK08 durability for parking lots, roadways, and site security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a high-performance architectural LED area light designed for demanding outdoor applications where efficiency, control readiness, and durability are critical. Built as a core solution in EiKO’s site and roadway lineup, it combines strong lumen output with flexible optics and robust environmental protection.

Key Features and Benefits

  • Delivers high-output illumination with excellent efficacy to reduce energy and maintenance costs.
  • Controls-ready design with screw-in receptacle simplifies future upgrades for photocell or networked controls.
  • Rugged outdoor construction with die-cast aluminum housing and UV-resistant lens supports long-term reliability.
  • Toolless hinged junction box and pre-installed 3.3' power cord help speed installation and servicing.
  • Certified for demanding projects with UL Listed, DLC Premium, FCC, and RoHS compliance.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 28000
  • Wattage: 200W
  • Voltage: 120-277V
  • Color Temperature: 4000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Distribution Type: Type V
  • Efficacy (lm/W): 140
  • Rated Life (70 Hours): 100000
  • Power Factor: 0.9
  • THD: 20
  • Frequency (Hz): 50|60
  • IP Rating: IP65
  • IK Rating: IK08
  • Max Ambient Temperature: 50°C

Common Uses

Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
