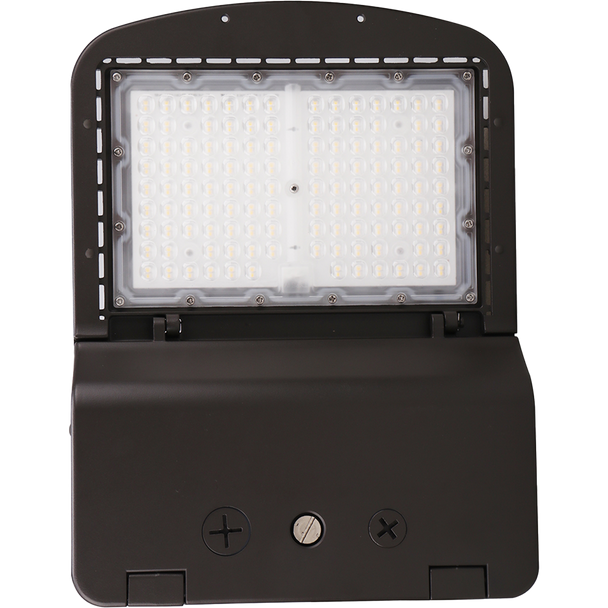

EiKO AAL1 Area Light, PowerSet 100/80/60W, 5000K, Type V Distribution, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, PowerSet 100/80/60W, 5000K, Type V Distribution, 120-277V

Now: $84.62
Reg: $153.84
Sale 45%
You save $ 69.22
  • SKU: E-AAL1-PS100-50T5-U
  • MPN: AAL1-PS100-50T5-U

Quick Overview

Slim architectural LED area light with selectable 100/80/60W output, 5000K CCT, Type V distribution, and 14,000/11,200/8,400 lm performance. IP65/IK08 rated with 0-10V dimming for parking lots, roadways, and site lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a high-performance architectural area light designed for modern outdoor site and roadway illumination. Built for flexibility, this PowerSet model allows field-adjustable wattage while delivering dependable light quality and robust environmental protection. As part of EiKO’s premium outdoor lineup, it combines efficiency, controls readiness, and durable construction for long-term commercial use.

Key Features and Benefits

  • PowerSet technology enables quick field wattage selection to match project light levels and reduce energy use.
  • Controls-ready design with screw-in receptacle simplifies adding sensors or networked lighting controls later.
  • Rugged outdoor build with IP65 ingress protection and IK08 impact resistance for demanding environments.
  • High efficacy performance helps lower operating costs while maintaining strong lumen output.
  • Certified for quality and compliance with UL Listed, DLC Premium, RoHS, and FCC standards.
  • Backed by a 5-year limited warranty for added project confidence.

Specifications

  • Lumen Output: 14000|11200|8400
  • Wattage: 100W|80W|60W
  • Voltage: 120-277V
  • Color Temperature: 5000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Distribution Type: Type V
  • Power Factor: 0.9
  • THD: 20
  • Efficacy (lm/W): 140
  • Rated Life (70 Hours): 100000
  • Max Ambient Temperature: 50°C
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: Bronze
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, auto dealerships, roadways, campuses, airports, urban developments, building facades, entrances, security lighting zones, and sign illumination applications.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
