EiKO AAL1 Area Light, 240W, 4000K, Type III, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

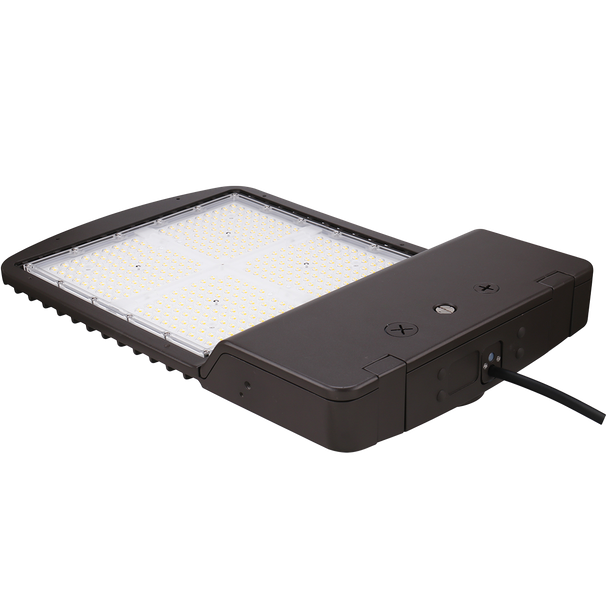

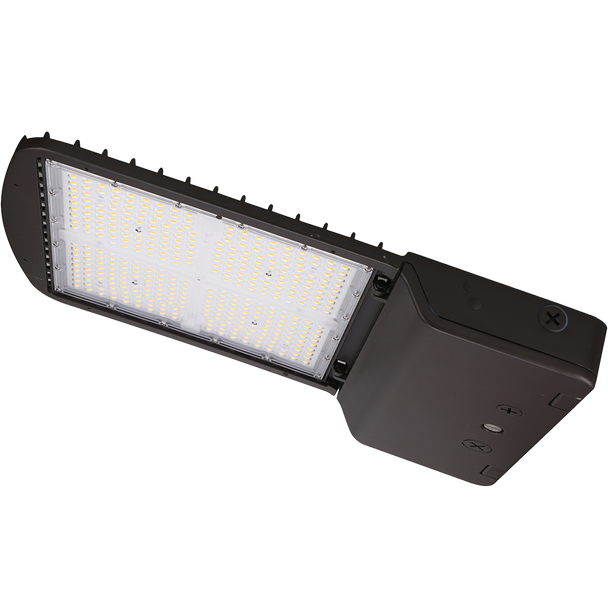

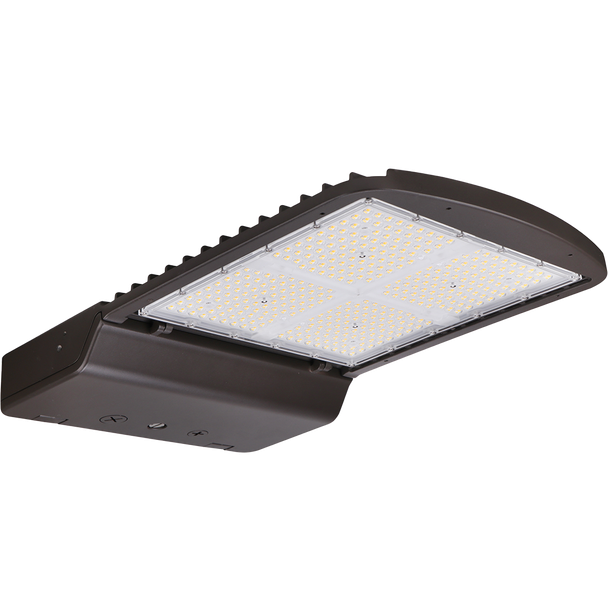

EiKO AAL1 Area Light, 240W, 4000K, Type III, 120-277V

Now: $107.69
Reg: $153.00
Sale 30%
You save $ 45.31
  • SKU: E-AAL1-240-40T3-U
  • MPN: AAL1-240-40T3-U

Quick Overview

EiKO AAL1 architectural LED area light delivers 33,600 lumens at 240W (140 lm/W) with Type III distribution, 4000K CCT, 0-10V dimming, and IP65/IK08 durability for parking lots, roadways, and site security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a high-performance architectural LED area light designed for demanding outdoor applications where efficiency, control readiness, and long-term reliability are critical. As part of EiKO’s premium outdoor lineup, it combines robust construction with flexible optical and control options to simplify both new installations and retrofit projects.

Key Features and Benefits

  • Delivers strong site illumination with high efficacy performance up to 140 lm/W for reduced energy costs.
  • Controls-ready design with screw-in receptacle supports easy field or factory integration of photocells and sensors.
  • Built for harsh outdoor environments with IP65 ingress protection, IK08 impact resistance, and 3G vibration rating.
  • DLC Premium qualified to support utility rebate opportunities and high-performance project requirements.
  • Certified for broad compliance needs: UL Listed, RoHS, and FCC.
  • Backed by a 5-year limited warranty for dependable long-term operation.

Specifications

  • Lumen Output: 33600
  • Wattage: 240W
  • Voltage: 120-277V
  • Color Temperature: 4000K
  • CRI: 80
  • Dimming Type: 0-10V (dim-to-off)
  • Distribution Type: Type III
  • Power Factor: 0.9
  • THD: 20
  • Rated Life (L70): 100000 hours
  • Max Ambient Temperature: 50°C
  • Housing Material: Die-cast aluminum
  • Lens Material: Polycarbonate
  • Finish / Color: Bronze powder coat
  • IP Rating: IP65
  • IK Rating: IK08

Common Uses

Ideal for parking areas, roadways, campuses, automotive dealerships, airports, streetscapes, building facades, entryways, signage, and general perimeter security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
