Description

Details

Delivery & Returns

Description

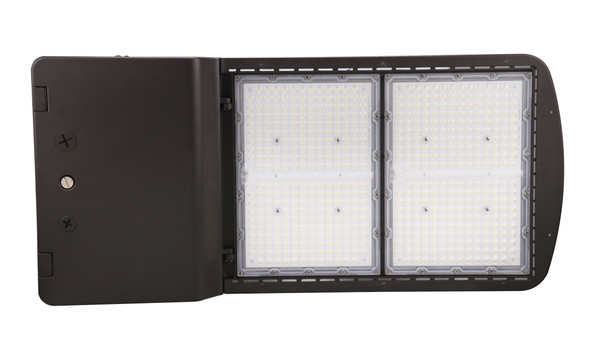

The EiKO AAL1 Area Light is a high-performance architectural outdoor fixture designed for demanding area and site lighting applications. As part of EiKO’s premium area lighting lineup, it combines high lumen output, selectable power, and controls-ready flexibility to simplify specification and long-term operation.

Key Features and Benefits

PowerSet technology enables field-selectable wattage (450W/400W/350W) to fine-tune light levels and energy use.
Controls-ready design with screw-in receptacle supports easy integration of standalone or networked controls.
Rugged outdoor construction with IP65 and IK08 ratings helps withstand harsh weather and impact-prone environments.
DLC Premium qualification supports utility rebate opportunities and high efficacy performance.
Certified for broad project compliance with UL Listed, RoHS, FCC, and ICES-005 standards.
Backed by a 5-year limited warranty for added project confidence.

Specifications

Lumen Output: 63000/56000/49000
Wattage: 450W/400W/350W
Voltage: 120-277V
Color Temperature: 4000K
CRI: >80
Dimming Type: 0-10V (dim-to-off)
Distribution Type: Type IV
Efficacy: 140 lm/W
Rated Life (L70): 100000 hours
Operating Temperature: -40b0C to 50b0C
Housing: Bronze powder-coated die-cast aluminum
Lens: Impact and UV-resistant polycarbonate

Common Uses

Ideal for parking areas, roadways, campuses, airports, automotive dealerships, streetscapes, building facades, entryways, signage, and perimeter security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet

Details

CRI:	80
Certifications:	UL Listed, RoHS, FCC, DLC Premium
Color Temperature:	4000K
Dimming Type:	0-10V
Distribution Type:	Type IV
Driver Type:	Fixed Output
Efficacy (lm/W):	140
Finish / Color:	Bronze
Housing Material:	Powder-coated die-cast aluminum
IK Rating:	IK08
IP Rating:	IP65
Lens Material:	Polycarbonate
Light Source:	Integrated LED
Lumen Output:	63000\|56000\|49000
Max Ambient Temperature:	50b0C
Power Factor:	0.9
Primary Material:	Die-cast aluminum
Rated Life (70 Hours):	100000
Special Features:	Power Selectable
THD:	20
Voltage:	120-277V
Warranty (Years):	5
Wattage:	450W\|400W\|350W
Wet Rated:	true
