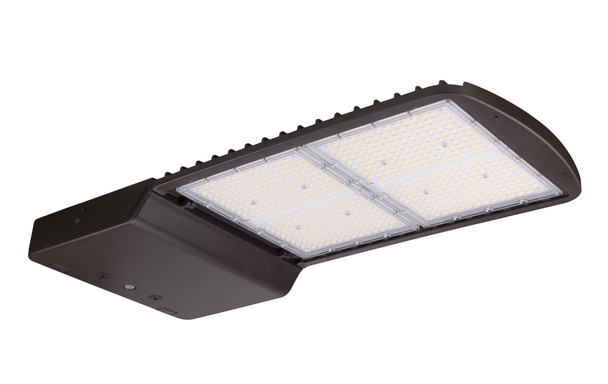

EiKO AAL1 Area Light, 450/400/350W PowerSet, 4000K, Type V, 277-480V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO AAL1 Area Light, 450/400/350W PowerSet, 4000K, Type V, 277-480V

$538.15
  • SKU: E-AAL1-PS450-40T5-V
  • MPN: AAL1-PS450-40T5-V

Quick Overview

High-output architectural LED area light with selectable 450/400/350W settings, 4000K CCT, Type V distribution, and 277-480V input. Delivers up to 63,000 lumens at 140 lm/W with 0-10V dimming, IP65/IK08 durability, and DLC Premium listing.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
IK08
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO AAL1 series is a high-performance architectural LED area light designed for demanding outdoor site lighting. Built for flexibility, this PowerSet model allows field wattage selection while maintaining strong efficacy and broad area coverage. It is a key solution in EiKO’s outdoor lineup for parking, roadway, and campus applications requiring reliable, long-life illumination.

Key Features and Benefits

  • PowerSet flexibility with selectable 450W, 400W, or 350W output to match project needs
  • High-performance optical system with Type V distribution for wide, uniform site coverage
  • Controls-ready design with screw-in receptacle and optional NEMA 7-pin photocell capability
  • Rugged outdoor construction with IP65 ingress protection, IK08 impact resistance, and 3G vibration rating
  • Certified for broad project acceptance: UL Listed, DLC Premium, RoHS, and FCC compliant
  • Backed by a 5-year limited warranty for long-term confidence

Specifications

  • Lumen Output: 63000|56000|49000
  • Wattage: 450W|400W|350W
  • Voltage: 277-480V
  • Color Temperature: 4000K
  • CRI: 80
  • Efficacy: 140 lm/W
  • Dimming: 0-10V, dim-to-off
  • Distribution Type: Type V
  • Rated Life (L70): 100000 hours
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40°C to 50°C
  • Surge Protection: 10kV standard (20kV optional)
  • Housing: Bronze powder-coated die-cast aluminum
  • Lens: Impact and UV-resistant polycarbonate
  • Pre-installed Cord Length: 3.3'

Common Uses

Ideal for parking lots, roadways, campuses, streetscapes, airports, automotive dealerships, building facades, entryways, signage, and general area security lighting.

RESOURCES AND DOWNLOADS

EiKO AAL1 Area Light Spec Sheet
