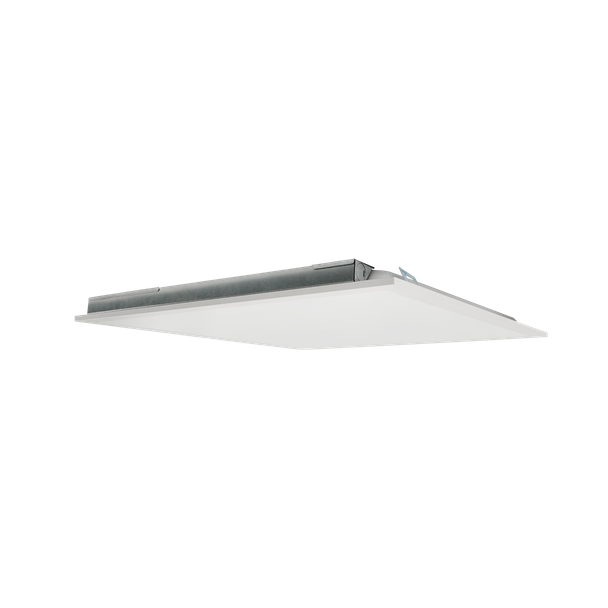

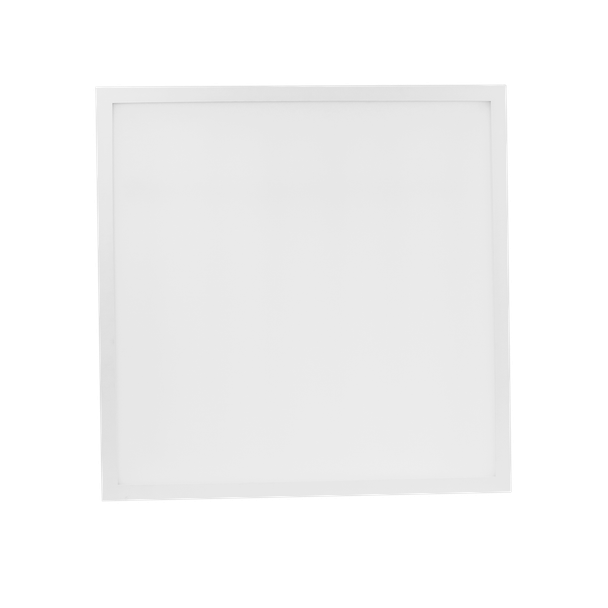

EiKO BP1 Backlit Flat Panel, 2x2, PowerSet 40/30/25W, 4000K, Standard DLC, 120-347V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO BP1 Backlit Flat Panel, 2x2, PowerSet 40/30/25W, 4000K, Standard DLC, 120-347V

$30.70
  • SKU: E-BP1-22PS40S-40-H
  • MPN: BP1-22PS40S-40-H

Quick Overview

2x2 backlit LED flat panel with selectable 40W/30W/25W output, 4000K color temperature, and up to 4400 lumens. Ideal for shallow plenum spaces.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO BP1-22PS40S-40-H is a 2x2 backlit LED flat panel from EiKO’s BP1 series, designed for high performance and versatility in commercial and institutional settings. Its PowerSet feature allows for field-selectable wattages (40W, 30W, or 25W) and corresponding lumen outputs, making it adaptable to a variety of lighting needs. The fixture’s low-profile, lightweight construction is perfect for shallow plenum spaces, and its high-quality, non-yellowing PMMA lens ensures uniform, glare-free illumination.

Key Features and Benefits

  • Selectable wattage (40W/30W/25W) and lumen output for tailored lighting
  • Consistent 4000K color temperature for bright, neutral white light
  • High efficacy up to 110 lm/W for energy savings
  • Long 100,000-hour rated life reduces maintenance costs
  • ETL, DLC Standard, RoHS, FCC, IC rated, and plenum rated for safety and compliance
  • 0-10V dimming and wide 120-347V input for flexible installation
  • Lightweight, easy-to-install design with extended junction box

Specifications

  • Size: 2x2 ft
  • Lumen Output: 4400lm | 3300lm | 2750lm
  • Wattage: 40W | 30W | 25W
  • Voltage: 120-347V
  • Color Temperature: 4000K
  • CRI: >80
  • Beam Angle: 120°
  • Rated Life: 100,000 hours (L70)
  • Certifications: ETL, DLC Standard, RoHS, FCC, IC, Plenum, Damp Location

Common Uses

Perfect for offices, hospitals, schools, retail spaces, and general purpose lighting where uniform, efficient illumination is needed.

RESOURCES AND DOWNLOADS

EiKO BP1 Backlit Flat Panel Spec Sheet
