EiKO LH1 Linear High Bay, 130W, 4000K, 120-277V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

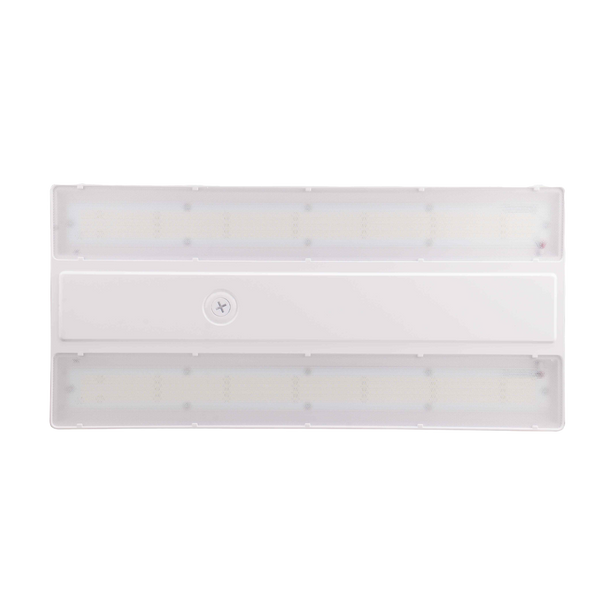

EiKO LH1 Linear High Bay, 130W, 4000K, 120-277V

$76.90
  • SKU: E-LH1-130-40-U
  • MPN: LH1-130-40-U

Quick Overview

EiKO LH1 linear high bay delivers 19,500 lumens at 130W (150 lm/W) with 4000K light, 0-10V dimming, and controls-ready sensor receptacle for warehouses, retail, and industrial spaces.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO LH1 Linear High Bay is a performance-driven fixture series built for demanding commercial and industrial interiors. Designed with a die-cast aluminum body and integrated thermal management, it provides reliable high-output illumination while supporting modern control strategies. In EiKO’s lineup, the LH1 stands out as a versatile, controls-ready solution for retrofit and new construction projects.

Key Features and Benefits

  • Delivers strong, efficient output at up to 150 lm/W to reduce energy and operating costs
  • Controls-ready design with screw-in receptacle simplifies future sensor and networked control upgrades
  • Frosted polycarbonate lens helps reduce glare for improved visual comfort in high-ceiling spaces
  • Multiple mounting pathways increase installation flexibility; ships with V-hook and aircraft cables
  • DLC Premium qualification supports utility rebate opportunities in many regions
  • Backed by a 5-year limited warranty for long-term confidence

Specifications

  • Wattage: 130W
  • Light output: 19,500 lumens
  • Efficacy: 150 lm/W
  • CCT: 4000K
  • CRI: >80
  • Input voltage: 120-277V
  • Dimming: 0-10V, dim-to-off
  • Beam angle: 90°
  • Estimated L70 life: 100,000 hours
  • Surge protection: up to 6kV
  • Power factor: >0.9; THD: <20%
  • Operating temperature: -40°F to 122°F (-40°C to 50°C)
  • Construction: white powder-coated die-cast aluminum housing with impact-resistant polycarbonate lens
  • Dimensions (90W-240W housing): 23" L x 11" W x 2-3/16" H; weight: 6.6 lbs

Common Uses

Ideal for warehouses, manufacturing plants, distribution centers, grocery stores, gymnasiums, indoor recreational facilities, cold storage areas, big box retail, and service repair centers.
