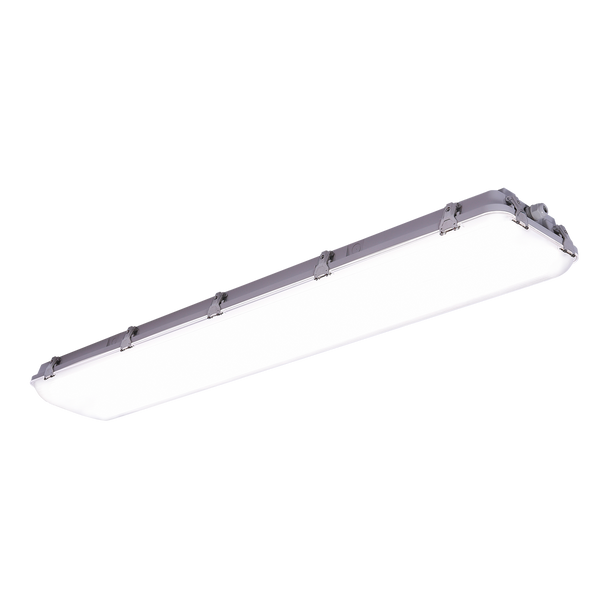

EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming

By Eiko Global
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming
EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO VPHB2 Vapor Proof Linear Fixture, PS135 (135/120/100W), 3500K/4000K/5000K, 120-347V, 0-10V Dimming

$276.45
  • SKU: E-VPHB2-PS135-8FCCT-HDIM
  • MPN: VPHB2-PS135-8FCCT-HDIM

Quick Overview

4' vapor proof linear LED high bay with PowerSet and ColorSet flexibility, delivering 15,000-20,250 lumens at 100/120/135W, 120-347V input, 0-10V dimming, and IP67/NEMA4X durability for harsh commercial and industrial spaces.

ETL Listed
DLC Standard
DLC Premium
NSF Listed
WET RATED
DAMP RATED
WARRANTY 5 YEARS
IP67
IK10
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO VPHB2 series is a rugged vapor proof linear fixture engineered for demanding environments where moisture, dust, and impact resistance are critical. This PS135 configuration combines field-selectable wattage and CCT to simplify stocking while delivering dependable high-output performance across industrial and commercial applications.

Key Features and Benefits

  • PowerSet and ColorSet technology enables on-site tuning for output and color to match changing project needs.
  • Built for harsh locations with NEMA 4X, IP67, and IK10 protection for long-term reliability.
  • Controls-ready platform supports plug-and-play occupancy sensor upgrades and advanced lighting strategies.
  • DLC Standard and DLC Premium listed, NSF rated, and backed by a 5-year limited warranty for confidence in specification.

Specifications

  • Lumen Output: 20250|18000|15000
  • Wattage: 135W|120W|100W
  • Voltage: 120-347V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Efficacy (lm/W): 150
  • Rated Life (70 Hours): 100000
  • Power Factor: 0.9
  • THD: 20
  • Dimming Type: 0-10V
  • Max Ambient Temperature: 104°F (40°C)
  • Housing Material: Polycarbonate
  • Lens Material: Polycarbonate
  • Form Factor: Linear
  • IP Rating: IP67
  • IK Rating: IK10
  • Weight: 14.5 lbs
  • Dimensions: 50.118" x 10.236" x 4.724"

Common Uses

Ideal for poultry barns, food processing areas, commercial freezers, warehouses, parking garages, and industrial facilities requiring sealed, high-lumen linear lighting.

RESOURCES AND DOWNLOADS

EiKO VPHB2 Vapor Proof Linear Fixture Spec Sheet
