TruBlu Mesh Passive Infrared Outdoor Sensor-Controller, 1-Channel, 0-10V, 12-24VDC, Z-10 Base, Bluetooth Mesh, High/Low Bay, Photocell

By Halco Lighting Technologies

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

TruBlu Mesh Passive Infrared Outdoor Sensor-Controller, 1-Channel, 0-10V, 12-24VDC, Z-10 Base, Bluetooth Mesh, High/Low Bay, Photocell

$130.25
  • SKU: HLT-PSC-ZKV-I-11H-BLE-SR
  • MPN: PSC-ZKV-I-11H-BLE-SR

Quick Overview

Wireless PIR sensor-controller for indoor/outdoor fixtures with Bluetooth Mesh control, 1-channel 0-10V dimming, integrated photocell, IP65 rating, and 12-24VDC operation for high/low bay applications.

UL Listed
DLC Standard
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Halco TruBlu™ Mesh Passive Infrared Outdoor Sensor-Controller is a compact, fixture-mounted wireless control solution designed for modern high bay and low bay lighting systems. As part of Halco’s connected controls lineup, it combines PIR motion sensing, daylight response, and Bluetooth Mesh communication to simplify intelligent lighting upgrades.

Key Features and Benefits

  • Bluetooth NLC certified platform enables reliable wireless mesh control and multi-vendor interoperability.
  • Single-channel 0-10V dimming output supports smooth continuous dimming, zoning, and high-end trim strategies.
  • Integrated PIR motion detection and onboard photocell improve energy savings through occupancy and ambient light response.
  • Rugged IP65 construction supports both indoor and outdoor fixture integration in demanding environments.

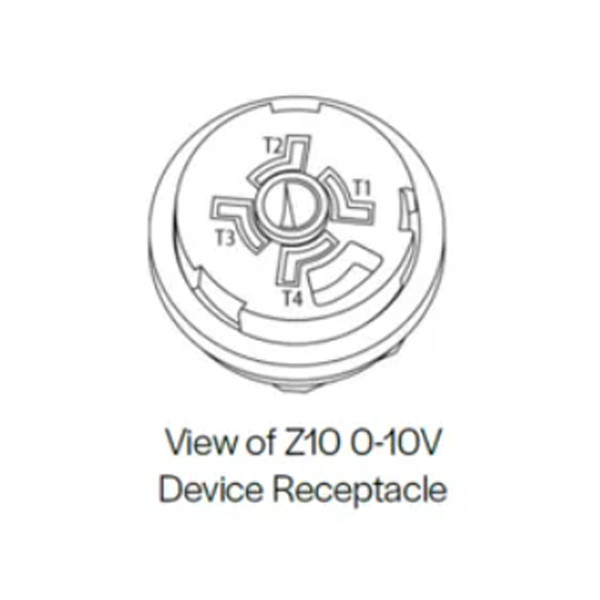

  • Quick-connect Z-10 receptacle mounting allows fast, tool-free installation and retrofit-friendly deployment.
  • Wide operating temperature range supports performance from -40°C to 70°C.

Specifications

  • Voltage: 12-24VDC
  • Dimming Type: 0-10V (1-channel)
  • Input Current: 50mA max
  • Dimming Output: 0-10VDC, 30mA
  • Load Control Output: 10-22VDC, 30mA (active high, select models)
  • Mounting Height: 8'-40'
  • Sensor Range: up to 80' diameter (high bay)
  • Bluetooth Range: up to 100'
  • IP Rating: IP65
  • Operating Temperature: -40°C to 70°C

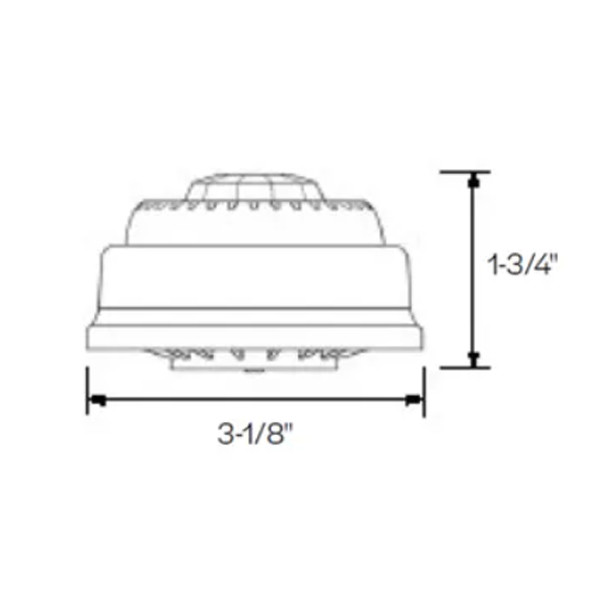

  • Dimensions: 1-3/4" H x 3-1/8" Dia.

Common Uses

Ideal for networked high bay and low bay luminaires in warehouses, industrial facilities, parking structures, canopies, and other indoor or outdoor commercial spaces requiring wireless occupancy and daylight-responsive dimming control.
