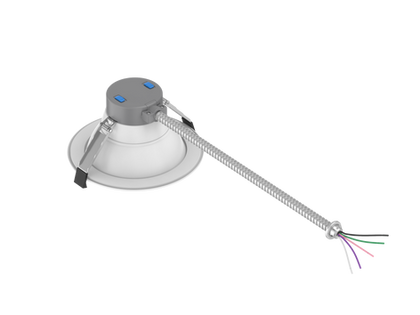

Honya Lighting CDL Series LED Commercial Downlight, 10", 20W/25W/30W/35W/40W, 2700K/3000K/3500K/4000K/5000K, 120-277V, 4500 lm, 3-in-1 Dimming, Wet Location, IC Rated

By Honya Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Honya Lighting CDL Series LED Commercial Downlight, 10", 20W/25W/30W/35W/40W, 2700K/3000K/3500K/4000K/5000K, 120-277V, 4500 lm, 3-in-1 Dimming, Wet Location, IC Rated

$52.00
  • SKU: HY-HYA-CDL10-40W-TWCCT
  • MPN: HYA-CDL10-40W-TWCCT

Quick Overview

10" commercial LED downlight with selectable 20W-40W power and 2700K-5000K CCT, delivering up to 4500 lumens. Supports 0-10V, Triac, and ELV dimming for offices, retail, and residential applications.

ETL Listed
Energy Star
DLC Standard
WET RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Honya Lighting CDL Series 10" LED commercial downlight is a versatile architectural solution designed for modern commercial and residential interiors. Built for flexibility, this fixture combines field-selectable wattage and CCT tuning in one clean, integrated form factor. As part of Honya’s CDL lineup, it delivers dependable performance for projects that demand efficiency, comfort, and installation adaptability.

Key Features and Benefits

  • Selectable output with five wattage settings (20W/25W/30W/35W/40W) to match changing lighting needs.
  • Five CCT options (2700K to 5000K) via onboard switch for warm-to-daylight ambiance control.
  • 3-in-1 dimming compatibility supports 0-10V, Triac, and ELV systems for broad control integration.
  • Wet location listed and IC rated construction supports reliable use in demanding environments.
  • Long-life LED performance with over 50,000 hours and >70% lumen maintenance reduces maintenance cycles.
  • Backed by a 5-year warranty and third-party safety/efficiency marks including ETL, Energy Star, and DLC.

Specifications

  • Lumen Output: 4500
  • Voltage: 120-277V AC
  • CRI: 80
  • Beam Angle: 90°
  • Power Factor: >0.9
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Housing Material: Aluminum
  • Lens Material: Polycarbonate (PC)
  • Cutout Size: 8.75"
  • Dimensions (L1/L2/L3/L4/L5/L6): 4.25"/17.72"/5.94"/1.69"/8.78"/11.50"

Common Uses

Ideal for offices, lobbies, conference rooms, schools, retail spaces, living rooms, bedrooms, and other commercial or residential interiors requiring efficient, tunable recessed illumination.
