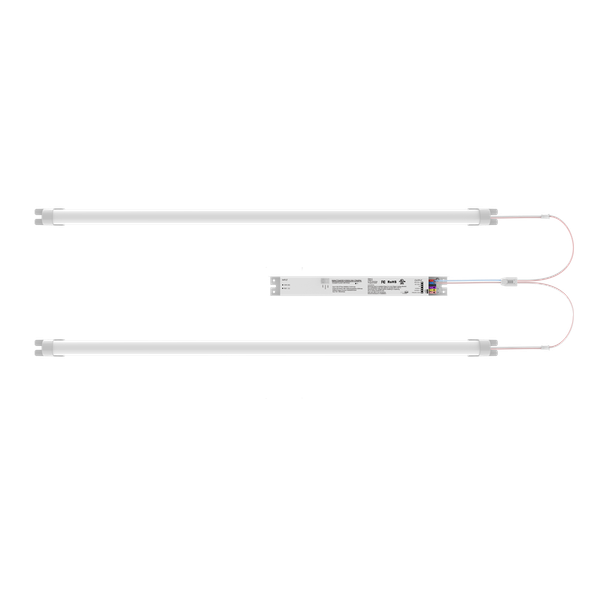

Universal Light Bar Kit, 4', 4000lm Nominal, 120-277V, 3500K|5000K, Two Bars, Lumen Selectable

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Universal Light Bar Kit, 4', 4000lm Nominal, 120-277V, 3500K|5000K, Two Bars, Lumen Selectable

$55.40
  • SKU: ILP-ULB4- 40L-U-L2
  • MPN: ULB4- 40L-U-L2

Quick Overview

4' LED retrofit light bar kit for upgrading T8/T12/T5 fixtures with two bars, selectable lumen output, 3500K/5000K CCT options, and 120-277V 0-10V dimming for efficient commercial relighting.

ETL Listed
DLC Standard
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Universal Light Bar Kit is a flexible LED retrofit solution designed to modernize existing fluorescent strip and troffer fixtures without reusing old sockets or ballasts. As part of ILP’s high-efficiency retrofit lineup, it delivers strong performance, fast installation, and dependable long-life operation for commercial spaces.

Key Features and Benefits

  • Lumen-selectable design allows field adjustment to match light levels and energy goals.
  • Magnetic backing, quick connectors, and included harnesses speed up installation and alignment.
  • Durable plastic body with frosted polycarbonate lens supports long-term reliability in retrofit applications.
  • Supports advanced controls compatibility, including bi-level dimming sensor and Bluetooth sensor options.
  • ETL Listed, DLC Standard qualified, TAA Compliant, and Title 24 Compliant with sensor option.
  • Backed by a 5-year standard warranty, with optional 10-year coverage.

Specifications

  • Lumen Output: 5100|5800|6400
  • Wattage: 32W|36W|40W
  • Voltage: 120-277V
  • Color Temperature: 3500K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Power Factor: 0.90
  • THD: 20
  • Efficacy (lm/W): 159|161|160
  • Rated Life (70 Hours): 100000
  • Max Ambient Temperature: 122°F (50°C)
  • Damp Rated: true

Common Uses

Ideal for education, healthcare, offices, grocery, retail, storage facilities, residential utility areas, and stairwells where existing fluorescent fixtures are being upgraded to efficient LED performance.
