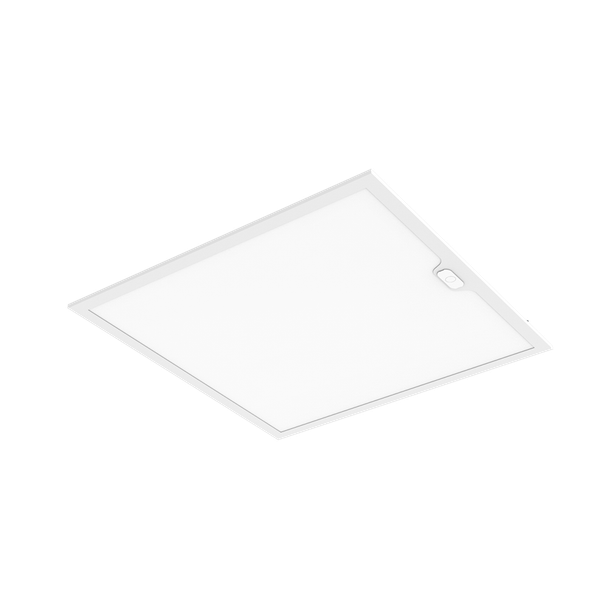

ILP VPAN Select Back-Lit Flat Panel, 18.6W, 2x2, 2800lm, 120-277V, 2700K/3000K/3500K/4000K/5000K, 0-10V, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VPAN Select Back-Lit Flat Panel, 18.6W, 2x2, 2800lm, 120-277V, 2700K/3000K/3500K/4000K/5000K, 0-10V, Gen 2

$53.85
  • SKU: ILP-VPAN22-28L-U-CCTS-G2
  • MPN: VPAN22-28L-U-CCTS-G2

Quick Overview

Selectable 2x2 back-lit LED flat panel delivering up to 2800 lumens at 18.6W with 5-CCT tuning, 0-10V dimming, IC rating, and damp-location suitability for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Back-Lit Flat Panel is a versatile architectural troffer solution designed for modern commercial interiors. As part of ILP’s configurable VPAN lineup, it combines selectable output, multi-CCT flexibility, and efficient back-lit performance for streamlined project standardization.

Key Features and Benefits

  • Field-selectable lumen and CCT settings simplify stocking and on-site adjustments.
  • High-transmission frosted PMMA lens and micro-optic design help deliver smooth, low-glare illumination.
  • 0-10V dimming support enables energy-saving control integration in commercial spaces.
  • Die-formed steel housing with post-paint finish provides durability and clean ceiling aesthetics.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and backed by a 5-year warranty (10-year optional).

Specifications

  • Lumen Output: 2726|2876|2894|2970|2958
  • Wattage: 18.6W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80
  • Efficacy (lm/W): 160
  • Rated Life (70 Hours): 100000
  • Power Factor: 0.90
  • Dimming Type: 0-10V
  • Form Factor: 2x2
  • Max Ambient Temperature: 104°F

Common Uses

Ideal for education facilities, healthcare areas, commercial offices, retail stores, grocery environments, food prep zones, and other indoor spaces requiring efficient, uniform recessed ceiling illumination.
