VPAN Select Back Lit Flat Panel, 2x2, 3500lm, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

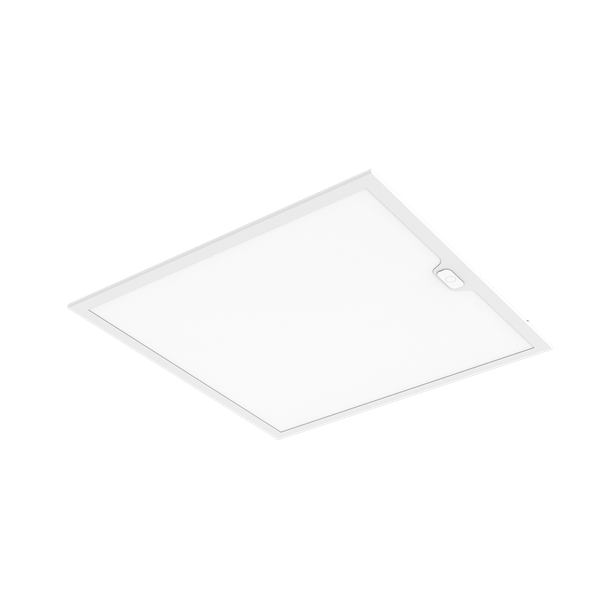

VPAN Select Back Lit Flat Panel, 2x2, 3500lm, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

$53.85
  • SKU: ILP-VPAN22-35L-U-CCTS-G2
  • MPN: VPAN22-35L-U-CCTS-G2

Quick Overview

2x2 back-lit LED flat panel with selectable 3500 lm package and 27K-50K CCT tuning, 0-10V dimming, IC and damp location ratings, and up to 161 lm/W for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series is a versatile back-lit flat panel family designed for modern commercial interiors that need efficient, comfortable, and adaptable lighting. This VPAN22 configuration delivers a 2x2 footprint with selectable white output and dependable long-life LED performance, making it a strong fit across ILP's architectural and utility panel lineup.

Key Features and Benefits

  • Selectable CCT technology enables on-site tuning from warm to cool white to match changing space needs.
  • Back-lit optical system with PMMA frosted lens and micro-optics helps reduce glare while maintaining smooth, uniform illumination.
  • 0-10V dimming support (100%-10%) allows energy-saving control integration for commercial projects.
  • Durable die-formed steel housing with post-paint finish provides rigidity and a clean installed appearance.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and backed by a 5-year standard warranty (10-year optional).
  • Type IC and damp-location suitability expand installation flexibility in insulated and conditioned ceiling environments.

Specifications

  • Lumen Output: 3384-3687 lm (model/lumen-step and CCT dependent)
  • Wattage: 23.4W (35L package)
  • Voltage: 120-277V
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
  • CRI: >80
  • Efficacy: Up to 161 lm/W (series maximum)
  • Rated Life: L70 >100,000 hours
  • Power Factor: >0.90
  • Dimming: 0-10V standard
  • Ambient Operating Range: -4b0F to 104b0F
  • Fixture Size: 23.7" x 23.7" x 1.3"

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor grid-ceiling applications requiring efficient, low-glare general illumination.
