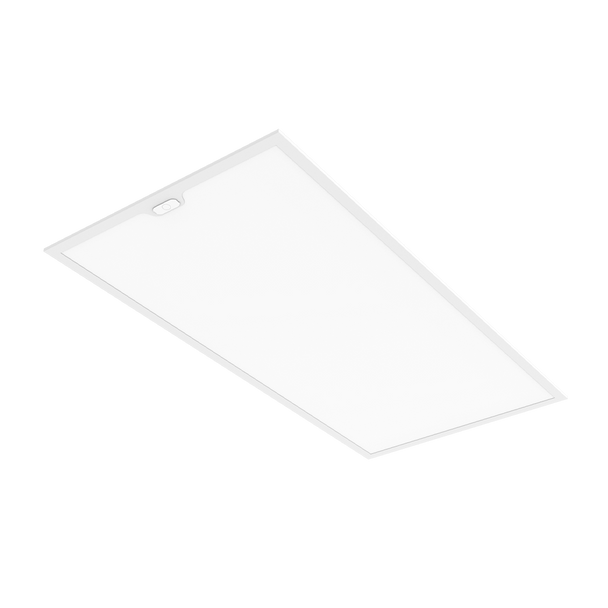

ILP VPAN Select Controls Ready Back-Lit Flat Panel, 2x4, 7000lm, 46.7W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VPAN Select Controls Ready Back-Lit Flat Panel, 2x4, 7000lm, 46.7W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2, Controls Ready

$75.40
  • SKU: ILP-VPAN24-70L-U-CCTS-G2 CR
  • MPN: VPAN24-70L-U-CCTS-G2 CR

Quick Overview

2x4 back-lit LED flat panel with selectable CCT, 7000 lm output, 46.7W, and 120-277V input. Controls-ready Gen 2 design with 0-10V dimming, IC rating, damp location suitability, and long 100,000+ hour L70 life.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Controls Ready Back-Lit Flat Panel is a Gen 2 architectural troffer solution designed for modern commercial interiors requiring flexibility and visual comfort. As part of ILP’s VPAN lineup, it combines selectable light color, high efficacy performance, and controls-ready integration for energy-conscious projects.

Key Features and Benefits

  • Selectable 2700K to 5000K CCT options let you tune lighting to task, mood, or code requirements.
  • Controls-ready configuration simplifies integration with occupancy/daylight control platforms.
  • Back-lit optical system with PMMA frosted lens delivers smooth, low-glare illumination.
  • Durable die-formed steel housing with post-paint finish supports long-term commercial use.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and backed by a 5-year warranty.

Specifications

  • Lumen Output: 7000
  • Wattage: 46.7W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V
  • Power Factor: 0.90
  • Rated Life (70 Hours): 100000
  • Form Factor: 2x4
  • Max Ambient Temperature: 104°F

Common Uses

Ideal for education facilities, healthcare spaces, offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor commercial ceilings using standard T-grid systems.
