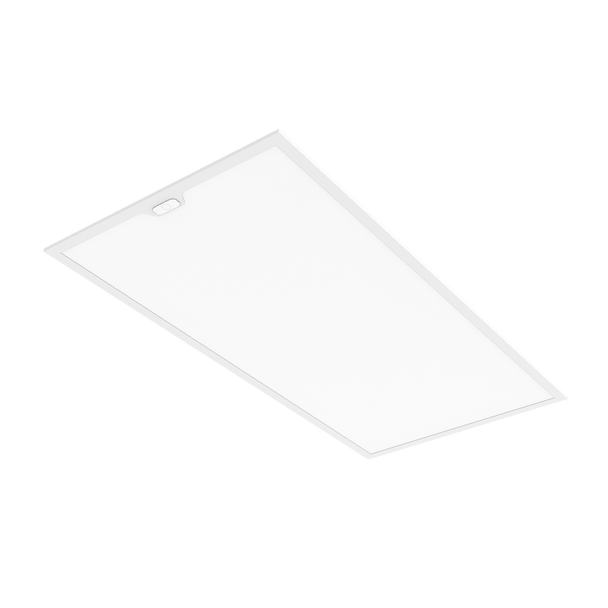

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 5600lm, 36.6W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 5600lm, 36.6W, 120-277V, 2700K|3000K|3500K|4000K|5000K, Gen 2, Controls Ready

$75.40
  • SKU: ILP-VPAN24-56L-U-CCTS-G2 CR
  • MPN: VPAN24-56L-U-CCTS-G2 CR

Quick Overview

2x4 back-lit LED flat panel with selectable CCT and lumen output, delivering up to 5600 lumens at 36.6W. Features 0-10V dimming, IC rating, damp-location suitability, and controls-ready flexibility for commercial interiors.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Back-Lit Flat Panel is a versatile commercial-grade luminaire designed for modern grid ceiling applications. As part of ILP’s Gen 2 VPAN lineup, it combines field-selectable output and color tuning with high efficacy performance to simplify specification and inventory. Its controls-ready architecture makes it a strong fit for energy-conscious retrofit and new construction projects.

Key Features and Benefits

  • Field-selectable lumen and CCT settings allow one fixture to cover multiple project requirements.
  • Back-lit optical system with frosted PMMA lens and micro-optics delivers smooth, low-glare illumination.
  • Controls-ready configuration supports advanced lighting control integration and future upgrades.
  • Type IC construction enables direct insulation contact for broader ceiling installation flexibility.
  • ETL Listed for U.S. and Canadian standards, damp-location suitable, and Title 24 compliant with sensor option.
  • Long-life LED platform with standard 5-year warranty and optional 10-year coverage.

Specifications

  • Lumen Output: 5600
  • Wattage: 36.6W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80+
  • Dimming: 0-10V (10%-100%)
  • Power Factor: >0.90
  • Rated Life (L70): >100000 hours
  • Efficacy: up to 161 lm/W
  • Ambient Operating Range: -4°F to 104°F
  • Fixture Size: 2x4
  • Housing Depth: 1.3"

Common Uses

Ideal for education, healthcare, offices, retail, grocery, food prep areas, storage facilities, and other indoor commercial spaces requiring efficient, uniform recessed panel lighting.
