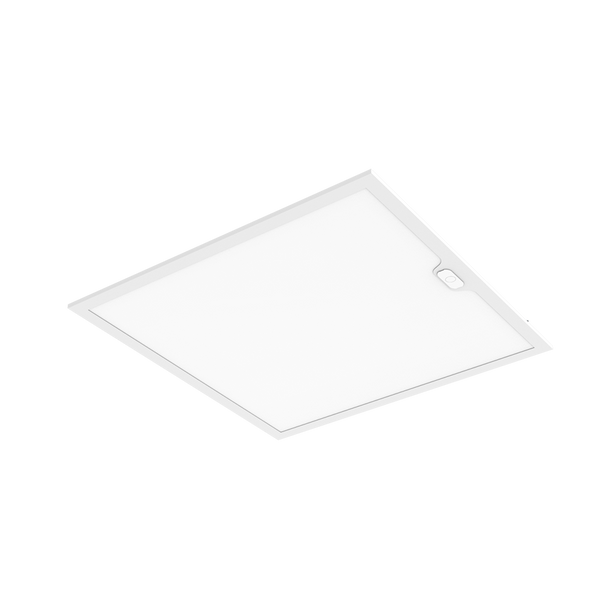

ILP VPAN Select Gen 2 2x2 Back-Lit LED Flat Panel, 4653-5049 lm, 34W, 120-277V, 2700K-5000K Selectable CCT, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP VPAN Select Gen 2 2x2 Back-Lit LED Flat Panel, 4653-5049 lm, 34W, 120-277V, 2700K-5000K Selectable CCT, Controls Ready

$53.85
  • SKU: ILP-VPAN22-49L-U-CCTS-G2 CR
  • MPN: VPAN22-49L-U-CCTS-G2 CR

Quick Overview

ILP VPAN Select back-lit LED flat panel delivers selectable CCT, 0-10V dimming, and high efficacy for commercial grid ceilings. Type IC and damp location rated with long-life performance for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Back-Lit Flat Panel is a versatile architectural troffer solution designed for modern commercial interiors. As part of ILP’s configurable VPAN lineup, it combines selectable light output and CCT flexibility with efficient, low-glare illumination for new construction and retrofit projects.

Key Features and Benefits

  • Selectable white tuning with five CCT options to match visual comfort and task needs across varied spaces.
  • Back-lit optical system with PMMA frosted lens and micro-optics helps deliver smooth, uniform light with reduced glare.
  • High-performance LED platform supports strong efficacy and long service life to lower operating and maintenance costs.
  • 0-10V dimming capability enables energy-saving control strategies and compatibility with common commercial dimming systems.
  • ETL Listed construction with damp-location suitability and Type IC rating supports broad code-compliant installation use cases.
  • Backed by a 5-year standard warranty, with optional 10-year coverage for extended project confidence.

Specifications

  • Lumen Output: 4653-5049 lm
  • Wattage: 34.0W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: >80
  • Power Factor: >0.90
  • Dimming: 0-10V (10%-100%)
  • Rated Life (L70): >100000 hours
  • Ambient Operating Range: -4°F to 104°F
  • Mounting Compatibility: Recessed grid, flange, surface, suspended, skylight, skylight tilt
  • Ceiling Grid Compatibility: 15/16" and 9/16" T-grid
  • Housing: Die-formed steel with white post-paint finish
  • Lens: PMMA frosted acrylic

Common Uses

Ideal for education facilities, healthcare buildings, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor spaces requiring efficient, comfortable general illumination.
