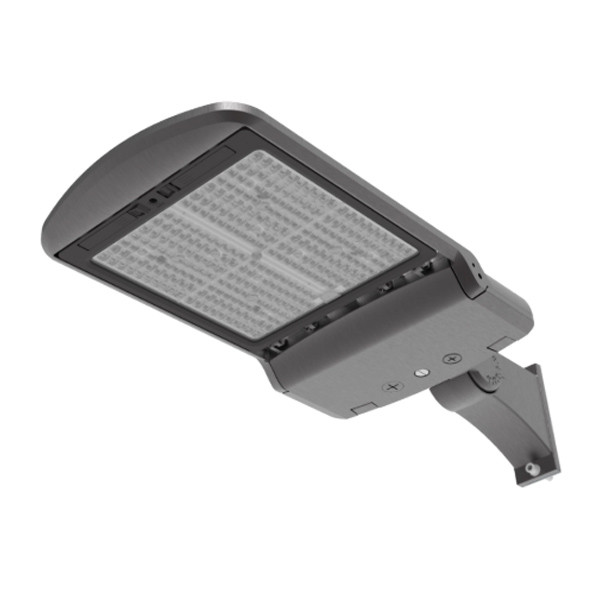

Industrial Lighting Products Viewpoint Area Light 2.0 Medium, 24000|28000|31000 lumens, 120-277V, selectable 3000K|4000K|5000K, Type IV, pole mount bracket, bronze

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products Viewpoint Area Light 2.0 Medium, 24000|28000|31000 lumens, 120-277V, selectable 3000K|4000K|5000K, Type IV, pole mount bracket, bronze

$247.75
  • SKU: ILP-VAM2-24L/28L/31L-U-CCTS-T4-PMB-BRZ
  • MPN: VAM2-24L/28L/31L-U-CCTS-T4-PMB-BRZ

Quick Overview

Medium-size LED area light with selectable 24,000/28,000/31,000 lumen packages and 3000K/4000K/5000K CCT. Features Type IV distribution, 0-10V dimming, IP66 housing, and PMB mounting for parking lots and roadways.

ETL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP66
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Viewpoint Area Light 2.0 Medium (VAM2) is a high-performance outdoor luminaire engineered for scalable site lighting across commercial and municipal projects. Designed as part of ILP’s Viewpoint family, it combines field-selectable output and CCT with robust construction to simplify specification and long-term maintenance.

Key Features and Benefits

  • Field-selectable lumen package and CCT reduce SKU count and speed up project deployment.
  • Field-swappable optics support application tuning with Type III, Type IV, or Type V distributions.
  • Rugged die-cast aluminum housing with UV-stabilized optics and IP66 sealing for demanding outdoor environments.
  • Advanced control readiness with 3-pin/7-pin receptacle options, photocell compatibility, PIR/Bluetooth sensor options, and standard 0-10V dimming.
  • High efficacy performance up to 179 lm/W helps lower energy and operating costs.
  • Certified for performance and compliance: ETL Listed, DLC Premium, RoHS, LM-79/LM-80 tested, and Title 24 Compliant.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 23757-31933
  • Wattage: 152W|170W|195W
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Frequency (Hz): 50|60
  • Power Factor: 0.90
  • THD: 20
  • Distribution Type: Type IV
  • Bug Rating: B3-U0-G3
  • IP Rating: IP66
  • Max Ambient Temperature: 50°C
  • Rated Life (70 Hours): 100000
  • Finish / Color: Bronze
  • Weight: 10.07 lbs

Common Uses

Ideal for parking lots, parking structures, roadways, parks, hospitals, schools, shopping centers, and auto dealerships where reliable, uniform outdoor illumination and flexible controls are required.
