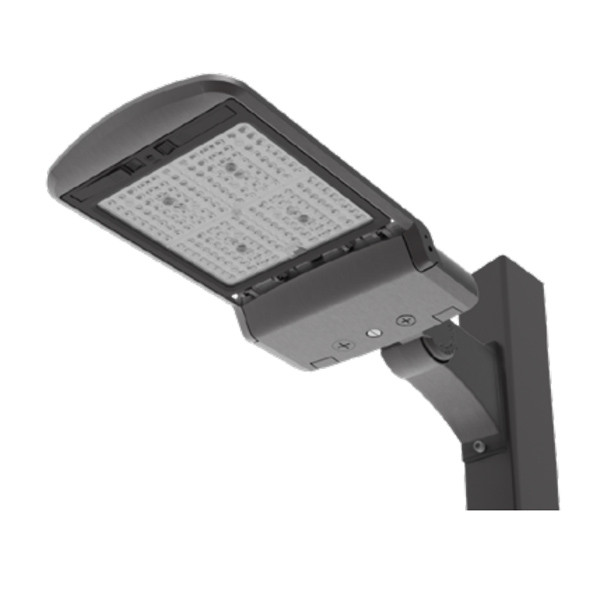

Viewpoint Area Light 2.0 Small, 16000|20000|23000 lumens, 120-277V, selectable 3000K|4000K|5000K, Type IV, pole mount bracket, bronze finish

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Viewpoint Area Light 2.0 Small, 16000|20000|23000 lumens, 120-277V, selectable 3000K|4000K|5000K, Type IV, pole mount bracket, bronze finish

$218.55
  • SKU: ILP-VAS2-16L/20L/23L-U-CCTS-T4-PMB-BRZ
  • MPN: VAS2-16L/20L/23L-U-CCTS-T4-PMB-BRZ

Quick Overview

Small-scale LED area light with selectable 16,000/20,000/23,000 lumens and 3000K/4000K/5000K CCT, Type IV optics, 120-277V input, and IP66 die-cast housing for parking lots, roadways, and site lighting.

ETL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP66
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Viewpoint Area Light 2.0 (VAS2) is a compact, high-performance outdoor luminaire built for demanding commercial and municipal sites. As part of ILP’s scalable Viewpoint family, it combines field-selectable output and CCT with robust optical control to simplify specification and stocking.

Key Features and Benefits

  • Field-selectable lumen package and CCT reduce SKU complexity while supporting project flexibility.
  • Field-swappable optics allow distribution tuning for changing site layouts and lighting goals.
  • Rugged IP66 die-cast aluminum construction with UV-stabilized optics supports long-term outdoor durability.
  • Advanced control readiness with 0-10V dimming and optional 3-pin/7-pin receptacles, photocells, and Bluetooth sensor options.
  • Certified performance with ETL Listed wet-location rating, DLC Premium listing, RoHS compliance, LM-79/LM-80 testing, and Title 24 compliance.
  • Backed by a 5-year standard warranty (10-year optional) for added project confidence.

Specifications

  • Lumen Output: 14755|15697|15402 (16L) | 18203|19365|19002 (20L) | 21880|23276|22840 (23L)
  • Wattage: 92W|113W|139W
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K
  • CRI: 80
  • Dimming: 0-10V (10-100%)
  • Frequency: 50/60
  • Power Factor: >0.90
  • THD: <20
  • Distribution: Type IV
  • Operating Temperature: -40°C to +50°C
  • Ingress Protection: IP66 luminaire and optical chamber
  • Rated Life: L80 >100,000 hours
  • Weight: 7.9 lbs

Common Uses

Ideal for parking lots, parking structures, roadways, parks, hospitals, schools, and retail centers where reliable, uniform area illumination and long service life are required.
