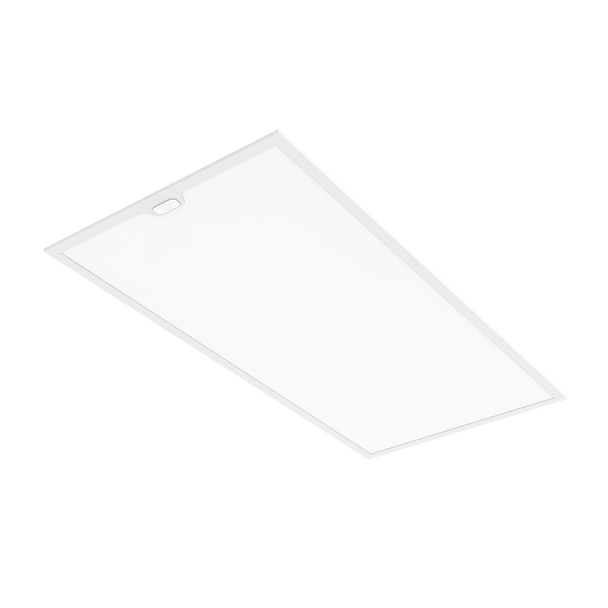

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 49L Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 49L Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

$75.40
  • SKU: ILP-VPAN24-49L-U-CCTS-G2
  • MPN: VPAN24-49L-U-CCTS-G2

Quick Overview

2x4 back-lit LED flat panel with selectable 4,900-7,700 lm and 2700K-5000K CCT, 120-277V input, 0-10V dimming, >80 CRI, up to 153 lm/W, IC-rated and damp-location listed for commercial interiors.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Gen 2 is a high-performance back-lit flat panel designed for modern commercial ceiling systems. Built in a 2x4 format with field-selectable lumen and CCT settings, it delivers flexible light output and visual comfort for a wide range of interior applications. As part of ILP’s VPAN lineup, it combines efficiency, control readiness, and durable construction for long-term value.

Key Features and Benefits

  • Field-selectable output and color tuning simplify stocking and on-site configuration.
  • High-transmission PMMA frosted lens with micro-optics helps reduce glare while maintaining uniform illumination.
  • 0-10V dimming support and optional advanced controls enable energy-saving lighting strategies.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and backed by a 5-year warranty (10-year optional).
  • Type IC construction allows insulation contact and supports recessed, flange, surface, suspended, and skylight mounting methods.

Specifications

  • Lumen Output: 4669-4935 lm
  • Wattage: 32.6W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: >80
  • Efficacy: up to 153 lm/W
  • Rated Life (L70): >100000 hours
  • Power Factor: >0.90
  • Dimming: 0-10V (10%-100%)
  • Ambient Operating Range: -4°F to 104°F
  • Fixture Size: 47.8" x 23.7" x 1.3"

Common Uses

Ideal for education facilities, healthcare spaces, offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor commercial spaces requiring efficient, low-glare general illumination.
