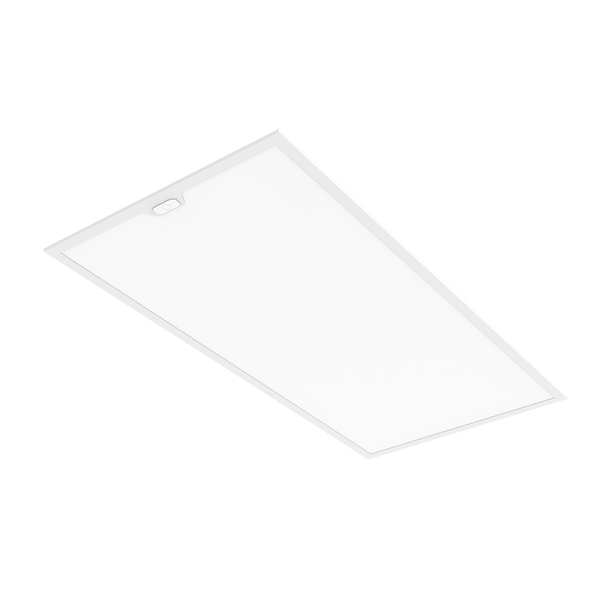

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 7000lm, 120-277V, 2700K/3000K/3500K/4000K/5000K, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 2x4, 7000lm, 120-277V, 2700K/3000K/3500K/4000K/5000K, Gen 2

$75.40
  • SKU: ILP-VPAN24-70L-U-CCTS-G2
  • MPN: VPAN24-70L-U-CCTS-G2

Quick Overview

2x4 back-lit LED flat panel with selectable CCT, 7000 lm package, 120-277V input, 0-10V dimming, >80 CRI, and Type IC/damp location rating for commercial, education, healthcare, and office spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series is a high-performance back-lit flat panel designed for modern commercial interiors that demand visual comfort, flexibility, and long service life. This Gen 2 2x4 configuration delivers a 7000-lumen package with selectable white light output, making it a versatile choice across changing project requirements. Built with robust construction and broad mounting compatibility, it is a dependable solution in ILP's architectural panel lineup.

Key Features and Benefits

  • Selectable 2700K to 5000K CCT settings allow one fixture to adapt to multiple space needs.
  • Back-lit optical system with PMMA frosted lens and micro-optics helps reduce glare while maintaining smooth, uniform illumination.
  • High efficacy platform (up to 161 lm/W series performance) supports energy-saving retrofit and new construction projects.
  • 0-10V dimming capability (10%-100%) enables straightforward integration with common lighting controls.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and suitable for damp locations.
  • Type IC rated housing supports insulation contact applications; backed by a 5-year standard warranty.

Specifications

  • Lumen Output: 7000
  • Voltage: 120-277V
  • Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
  • CRI: >80
  • Wattage: 47.0W (70L package, model table)
  • Power Factor: >0.90
  • Dimming: 0-10V (10%-100%)
  • Rated Life: L70 >100,000 hours
  • Ambient Operating Range: -4b0F to 104b0F
  • Construction: Die-formed steel housing with white post-paint finish
  • Lens: High-transmission frosted PMMA acrylic
  • Fixture Size: 47.8" x 23.7" x 1.3"

Common Uses

Ideal for offices, schools, healthcare facilities, retail spaces, grocery stores, food prep areas, storage facilities, and other indoor commercial environments requiring efficient, low-glare general illumination.
