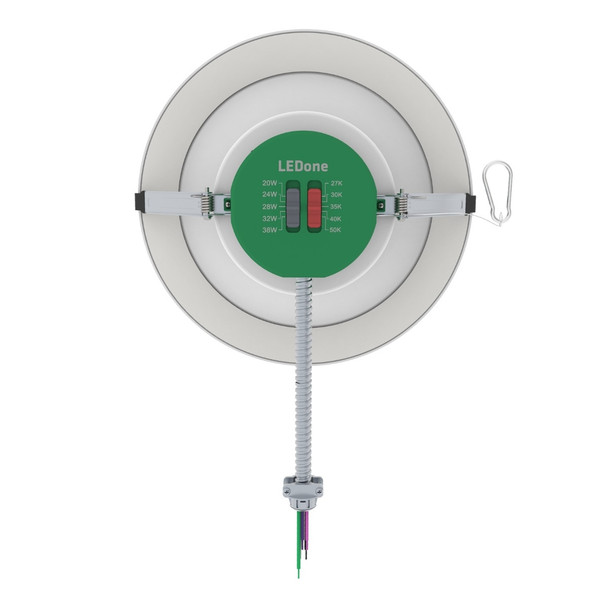

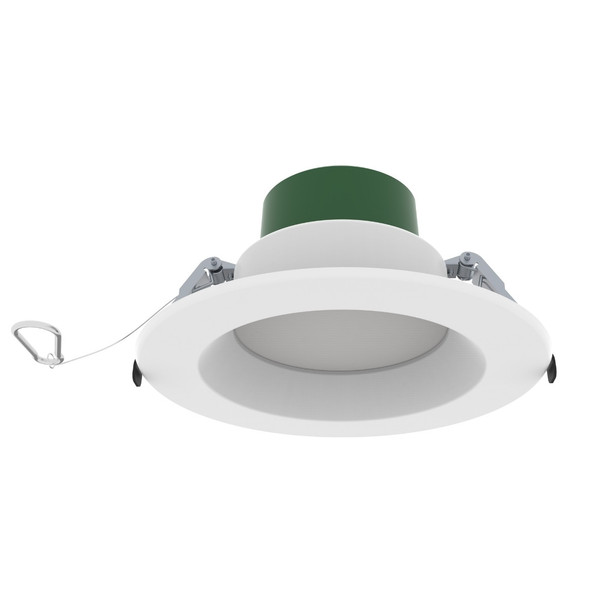

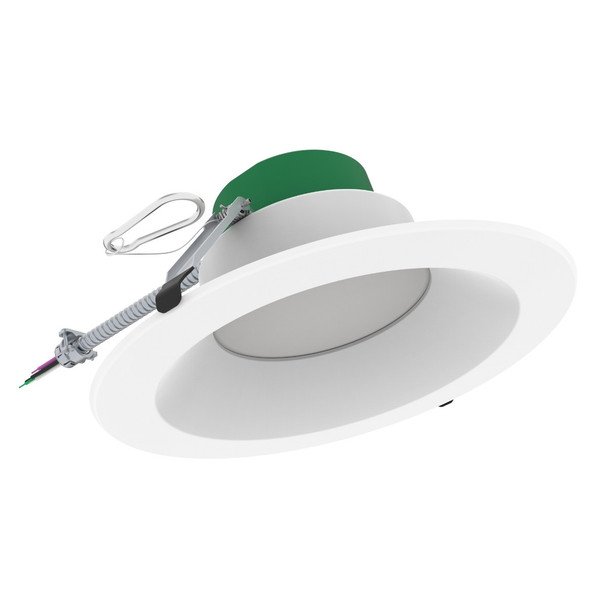

LEDone LOC-10CDL-MW38W5CCT, 10", wattage selectable 20W/24W/28W/32W/38W, 5CCT selectable 2700K/3000K/3500K/4000K/5000K, 120-277V

By LEDone Distribution

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LEDone LOC-10CDL-MW38W5CCT, 10", wattage selectable 20W/24W/28W/32W/38W, 5CCT selectable 2700K/3000K/3500K/4000K/5000K, 120-277V

$70.00
  • SKU: LOD-LOC-10CDL-MW38W5CCT
  • MPN: LOC-10CDL-MW38W5CCT

Quick Overview

10" commercial LED downlight with selectable wattage (20W-38W) and 5CCT tuning (2700K-5000K), delivering up to 4150 lumens. Features 0-10V/Triac/ELV dimming, CRI 90, IP54 wet rating, and 50,000-hour life.

ETL Listed
Energy Star
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The LEDone LOC-#CDL Family Series commercial downlight is built for flexible, high-performance interior lighting across demanding commercial spaces. The LOC-10CDL-MW38W5CCT model combines field-selectable wattage and color temperature in one fixture, making it a versatile choice in LEDone’s architectural downlighting lineup.

Key Features and Benefits

  • 5-level power tuning lets you match light output and energy use to each project zone.
  • 5CCT adjustability supports warm to daylight tones for adaptable visual comfort.
  • Tri-mode dimming compatibility (0-10V, Triac, ELV) enables broad control system integration.
  • IP54 wet-location construction with aluminum heat sink and PC diffuser supports long-term reliability.
  • Energy Star listed and ETL Listed for trusted compliance and performance confidence.
  • Backed by a 5-year limited warranty for added peace of mind.

Specifications

  • Lumen Output: 2550|2850|3200|3600|4150
  • Wattage: 20W|24W|28W|32W|38W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 90
  • Power Factor: 0.9
  • THD: 7.8
  • Efficacy (lm/W): 109|113|114|119|128
  • Beam Angle: 95°
  • Rated Life (70 Hours): 50000
  • Operating Temperature: -25°C to 40°C

Common Uses

Ideal for hotels, healthcare facilities, meeting rooms, corridors, hallways, and museums, as well as other commercial retrofit or new-construction recessed downlighting applications.

RESOURCES AND DOWNLOADS

LEDone LOC-10CDL-MW38W5CCT Spec Sheet
