Name: LLHB4 Series 4th Gemeration Linear High Bay, 50W-100W Power Adjustable
Brand: Westgate Manufacturing
SKU: WM-LLHB4-100W-MP-40K-D-480V
Price: 272.7 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

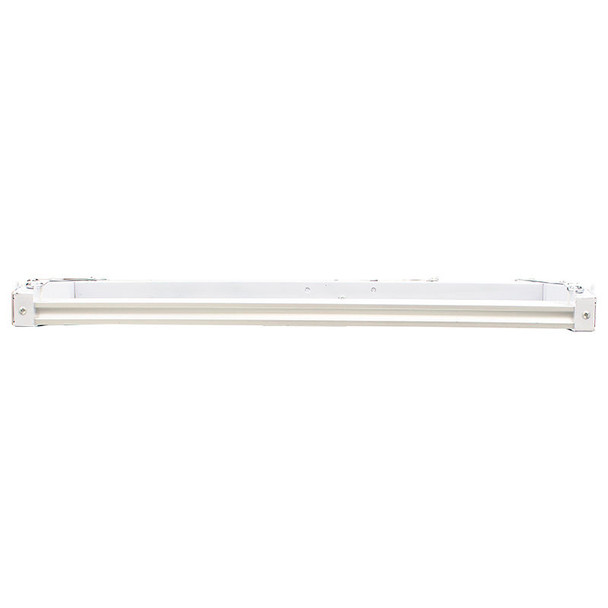

Westgate Manufacturing LLHB4 Series 100W Linear High Bay – 4th Generation

Experience superior industrial lighting with the Westgate Manufacturing LLHB4 Series 4th Generation Linear High Bay Light. Specifically engineered to replace outdated HID and fluorescent lighting systems, this 100W high bay fixture is perfect for large indoor spaces such as manufacturing facilities, warehouses, and other industrial environments, efficiently illuminating areas with mounting heights ranging from 10ft to 40ft.

Key Features and Benefits

Voltage: 480V
Wattage: 100W
Power Factor: >0.95
Efficacy: 155 LPW
Surge Protector: Built-in to enhance reliability
Housing: Durable steel construction
Dimming: 0~10V Dimmable for flexible lighting control
Lens Material: Polycarbonate Lens for superior light diffusion
Total Lumens: 13600LM
Color Temperature: 4000K for bright, neutral white light
Color Rendering Index (CRI): >80 for true-to-life color representation
Rated Life: 50,000 Hours
Warranty: 5-Year Warranty for peace of mind

Technical Specifications

Size: 24 1/4” (L) X 13 3/4” (W) X 2” (H)
Color Temp.: 4000K
Brightness: 13600 lumens

Ideal Applications

The LLHB4 Series is perfect for use in manufacturing plants, distribution centers, industrial and commercial settings, grocery stores, and gymnasiums. Its advanced design ensures efficient, long-lasting, high-quality lighting that supports productivity and safety in various settings.

RESOURCES AND DOWNLOADS

LLHB4 Series 4th Gemeration Linear High Bay Spec Sheet

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	4000K
Compliance & Warranty:	Damp Location\|5 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	White
Housing Material:	Aluminum
Item Height (Inch):	1.968503937007874
Item Length (Inch):	24.212598425196852
Item Weight (LBS):	8.818490487395103
Item Width (Inch):	13.779527559055117
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Polycarbonate lens
Lumen Output:	13600\|6250\|10000\|12500
Operating Temperature:	-4°F to 131°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	480V
Wattage:	50W\|80W\|100W
