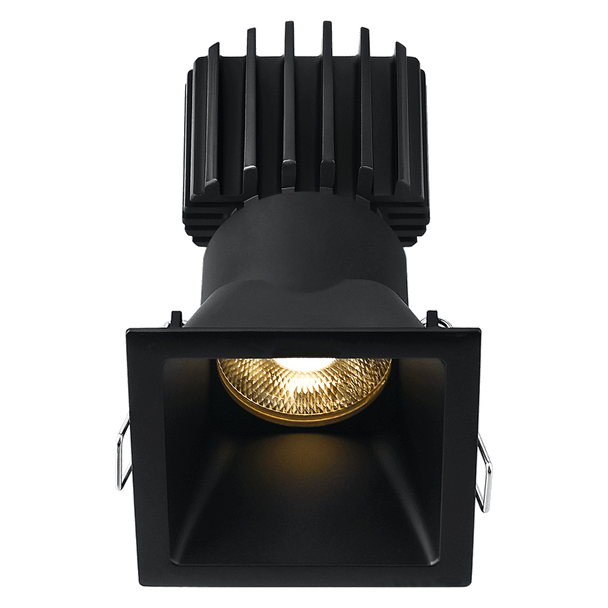

Lotus Tangra 3" Fixed Square Deep Regressed Thin Trim, 5CCT CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 3" Fixed Square Deep Regressed Thin Trim, 5CCT CRI98

$128.90
  • SKU: LLL-L3F-SDT-5C98
  • MPN: L3F-SDT-5C98

Quick Overview

3" fixed square deep regressed LED downlight with thin trim, up to 1600 lm, 11W/15W selectable power, 5CCT tuning, high CRI98, and wet-location IP54 rating for premium residential and commercial lighting.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

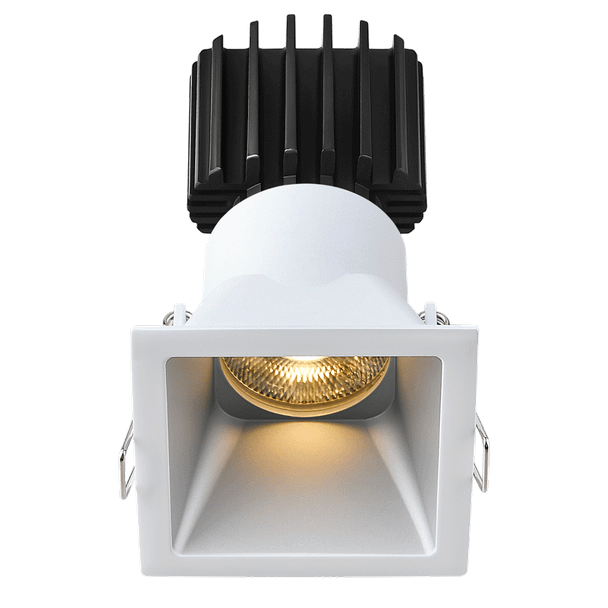

The Lotus Tangra L3F-SDT series is a premium 3" fixed square deep regressed downlight engineered for low-glare architectural illumination. Built with a solid cast aluminum body and modular optics/driver options, it delivers flexible performance for both residential and commercial projects. This configuration features a white trim with 5CCT CRI98 LED output for high-fidelity color rendering.

Key Features and Benefits

  • Deep regressed, near-trimless design helps reduce glare while maintaining a clean architectural look.
  • Selectable 11W/15W operation supports output tuning up to 1600 lumens.
  • High color quality with CRI98 and 5CCT field-selectable white light for versatile ambiance control.
  • Wet-location and IP54 construction supports use in moisture-prone environments.
  • Certified cETLus and FCC compliant for dependable code-ready installation.
  • Long-term coverage with Lotus lifetime line support plus 5-year warranty.

Specifications

  • Lumen Output: 1600
  • Wattage: 11W|15W
  • Voltage: 120V-347V (driver dependent)
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 98
  • Beam Angle: 20°|24°|36°|50°
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Dimming Type: 0-10V|Phase
  • Fixture Input: 20-40V DC, max 350mA constant current
  • Max Ambient Temperature: 45°C
  • Rated Life (70 Hours): 50000
  • Cutout: 2 5/8" square
  • Ceiling Clearance for Driver: 4"

Common Uses

Ideal for upscale residential interiors, hospitality spaces, retail displays, corridors, and general ambient lighting where low glare, high CRI, and compact 3" recessed form factor are required.
