Description

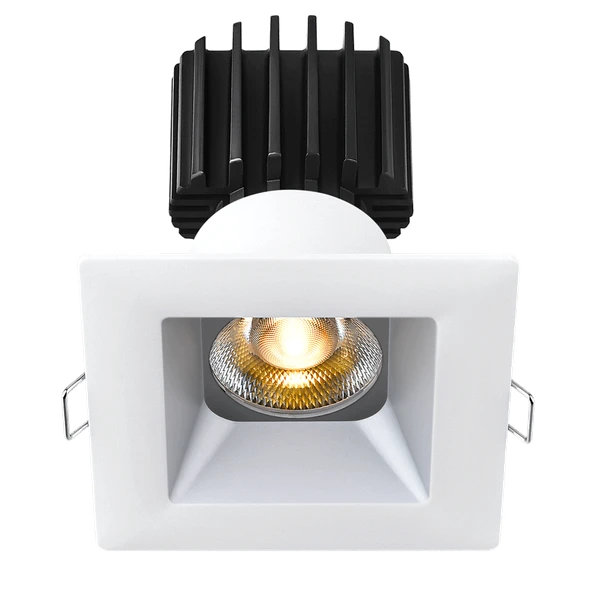

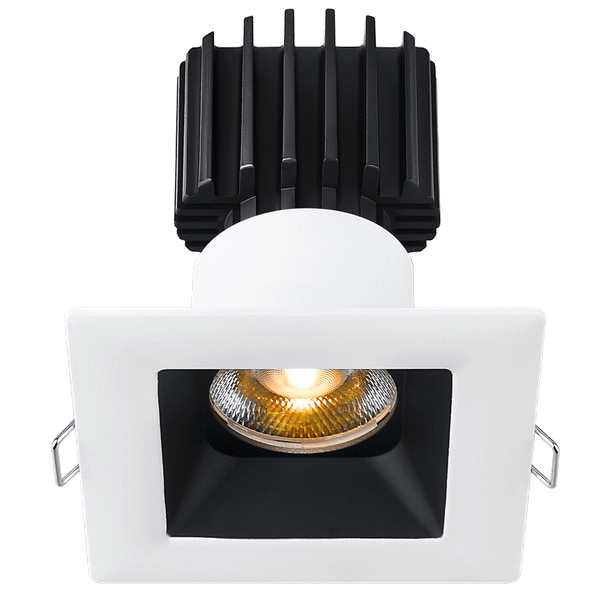

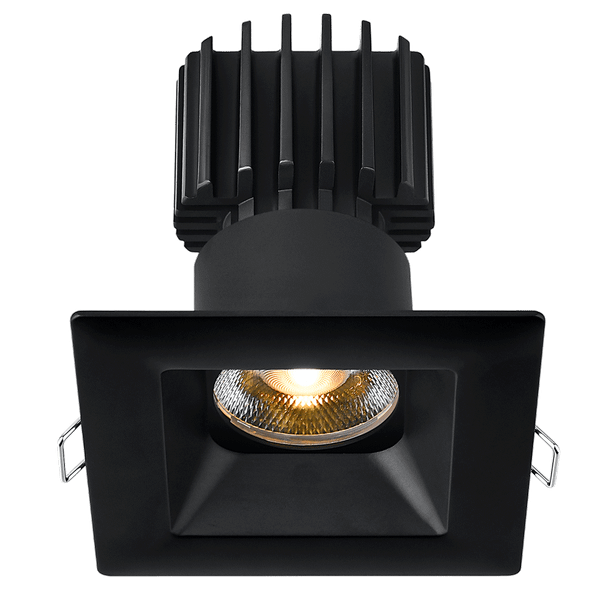

The Lotus Tangra L3F-SRW series is a premium 3" fixed square recessed fixture engineered for reduced-glare ambient and general lighting. Built in Canada with a solid cast aluminum body and advanced optics, it is a key architectural downlight in the Lotus lineup for high-performance residential and commercial projects.

Key Features and Benefits

Ultra-high color quality with CRI98 at 3000K for rich, accurate color rendering in refined interiors.
Flexible lighting design with multiple beam spreads (20°, 24°, 36°, 50°, 60°) and optic choices to match task or accent needs.
Selectable 11W/15W operation with up to 1600 lumens for balanced efficacy and output.
Supports both Triac (120V) and 0-10V (120-347V) dimming driver families for broad project compatibility.
Certified cETLus and FCC, with Type IC, Air Tight, Open Plenum, and Wet Location IP54 ratings for code-ready installs.
Backed by Lotus lifetime coverage while manufactured plus 5 years for long-term confidence.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable
Voltage: 120-347V (driver dependent)
Color Temperature: 3000K (this configuration)
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
CRI: 98
Fixture Input: 20-40V DC, max 350 mA constant current
Cutout: 2 5/8" square
Required Ceiling Space: 4" above ceiling for driver
Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
Rated Life: 70% light output at 50,000 hours
Housing: solid cast aluminum
Dimming Performance: 3% reverse phase cut / 4% forward phase cut (Triac)

Common Uses

Ideal for upscale residential spaces, hospitality areas, retail environments, corridors, and other interior or protected exterior soffit locations requiring compact, high-CRI recessed illumination with low glare and flexible beam control.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Square Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Efficacy (lm/W):	145
Finish / Color:	White\|Alzak\|White-Black Duo\|Black\|Oil Rubbed Bronze
Form Factor:	Square
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
