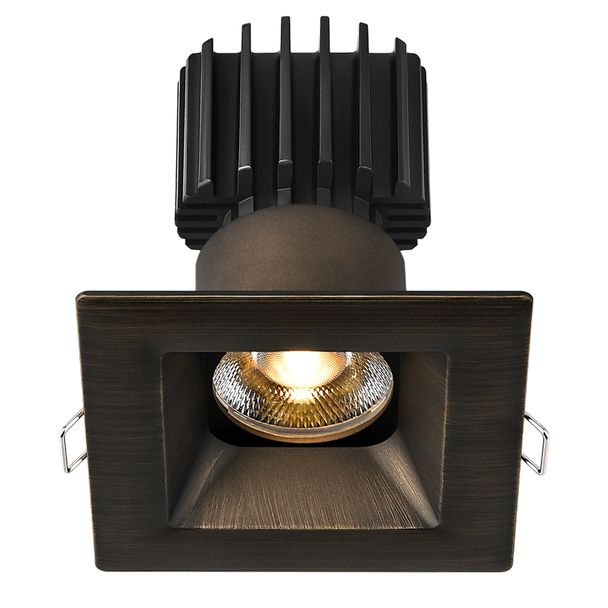

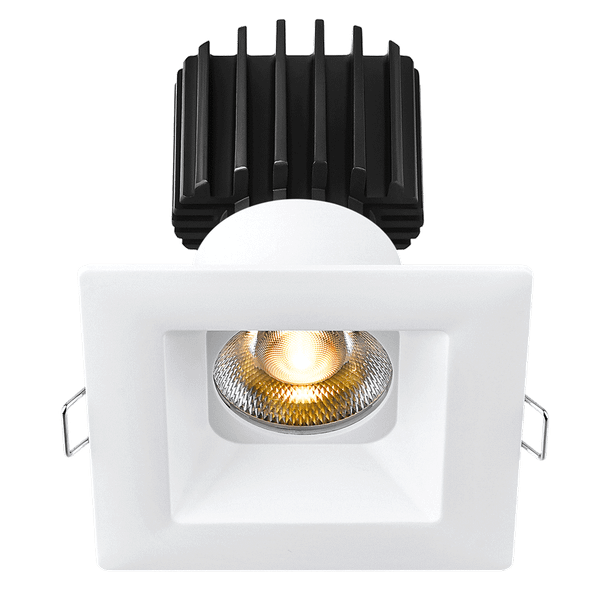

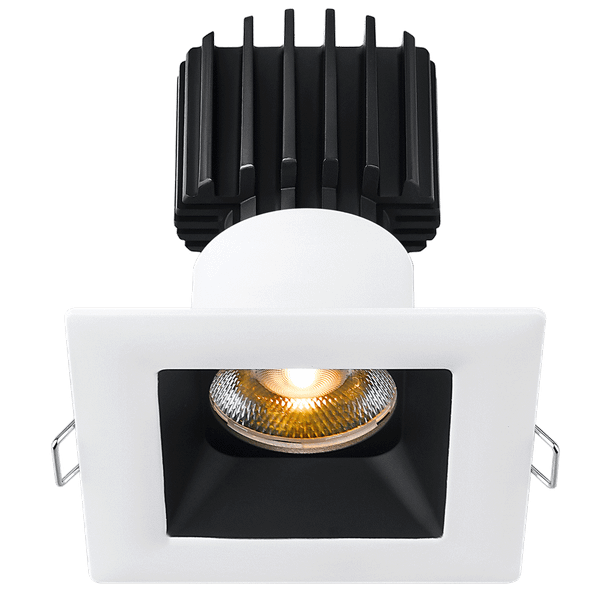

Name: Lotus Tangra 3" Fixed Square Recessed Wide Trim, 5CCT CRI98
Brand: Lotus LED Lights
SKU: LLL-L3F-SRW-5C98
Price: 125.85 USD
Availability: InStock

Description

Details

Delivery & Returns

Description

The Lotus LED Lights Tangra L3F-SRW series is a premium 3" fixed square recessed wide trim fixture engineered for architectural-grade performance. Built in Canada with a solid cast aluminum body and advanced optics, it delivers flexible light control and high visual comfort for modern interiors. Its modular platform supports multiple beam, trim, and CCT/CRI configurations for tailored project results.

Key Features and Benefits

High-quality cast aluminum construction with refined finish options for long-term durability and design appeal.
Selectable 11W/15W operation with up to 1600 lumens for adaptable output across residential and commercial spaces.
Advanced optical choices (clear, semi-frosted, frosted, and lens options) help balance punch, spread, and glare control.
Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54.
Backed by Lotus long-term coverage: warranty extends for as long as the line is manufactured plus 5 years.

Specifications

Lumen Output: up to 1600
Wattage: 11W|15W
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Voltage: 120V|120-347V
Dimming Type: Phase|0-10V
Beam Angle: 20°|24°|36°|50°|60°
Color Temperature: 2700K|3000K|3500K|4000K|5000K
CRI: 98
Output Current: 350mA
Output Voltage Range: 20-40V DC
Max Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
Rated Life (70 Hours): 50000

Common Uses

Ideal for ambient and general lighting in residential and commercial interiors, including corridors, hospitality spaces, retail areas, and high-end living spaces where compact aperture, reduced glare, and wet-location capability are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Square Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Dimming Type:	Phase\|0-10V
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Form Factor:	Square
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	-40°F (-40°C) to +113°F (+45°C)
Output Current:	350mA
Output Voltage Range:	20-40VDC
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Wattage:	11W\|15W
Wet Rated:	true
