Description

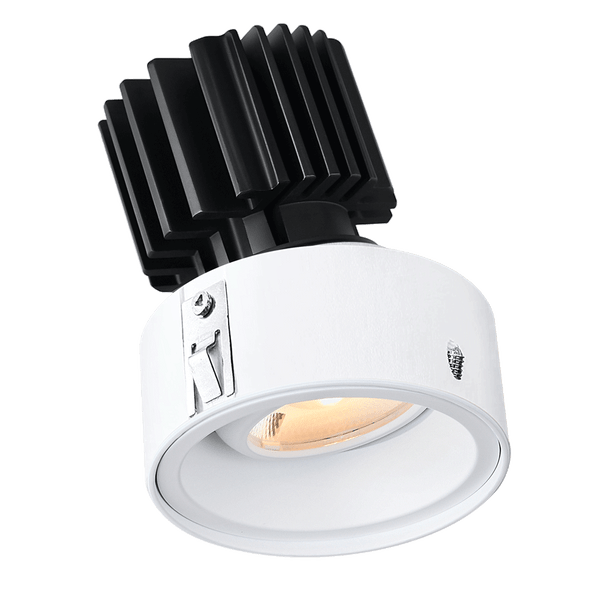

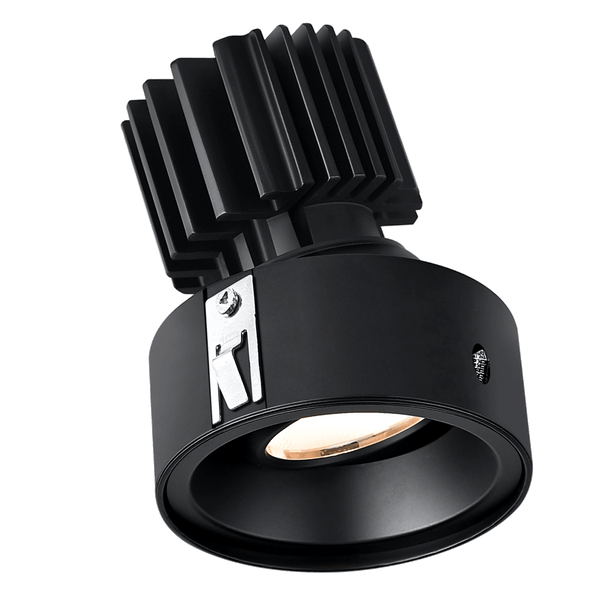

The Lotus Tangra L3G-RIF series is a premium 3" gimbal round invisible flangeless recessed fixture designed for high-end architectural and task lighting. Built with a solid cast aluminum body and advanced optics, it delivers precise beam control, high color quality, and flexible aiming for demanding residential and commercial spaces.

Key Features and Benefits

Precision aiming with 20° tilt and full 360° rotation for focused task and accent illumination.
Modular platform with multiple beam spreads and LED packages to match project-specific lighting goals.
High-performance dimming support with Triac or 0-10V driver options (driver ordered separately).
Certified for challenging installations with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 compliance.
Long-term reliability backed by Lotus lifetime line support plus 5-year warranty coverage.

Specifications

Lumen Output: up to 1600
Wattage: 11W|15W (user selectable)
Beam Angle: 20°|24°|36°|50°|60°
Color Temperature: 3000K (this configuration)
CRI: 98 (this configuration)
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Input to Fixture: 20-40V DC, max 350mA constant current
Rated Life (70% output): 50000 hours
Operating Temperature: -40°F to +113°F (-40°C to +45°C)

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, millwork details, and wood ceiling applications in upscale residential, hospitality, and commercial interiors where discreet trimless aesthetics and accurate light control are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Gimbal Round Invisible Flangeless Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Efficacy (lm/W):	145
Finish / Color:	White\|Black
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
