Description

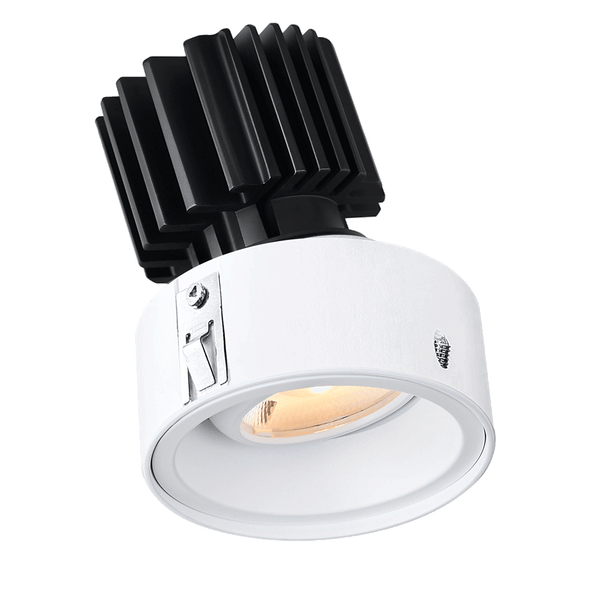

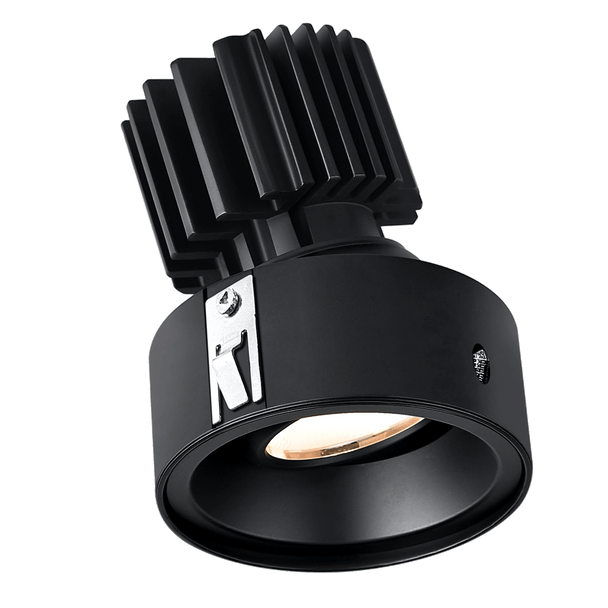

The Lotus L3G-RIF Tangra is a premium 3" gimbal round invisible flangeless recessed fixture designed for high-end architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers precise beam control and high color quality for residential and commercial spaces. As part of Lotus’ modular Tangra lineup, it supports multiple driver and LED configurations for tailored performance.

Key Features and Benefits

Precision aiming with 20° tilt and full 360° rotation for flexible accent and task lighting.
High-output performance up to 1600 lumens with selectable 11W or 15W operation (driver dependent).
Premium build quality with cast aluminum construction and refined trim/optic finish options.
Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54.
Long-term reliability backed by Lotus lifetime line support plus 5-year warranty coverage.

Specifications

Lumen Output: 1600
Wattage: 11W|15W
Voltage: 120V|120-347V
Color Temperature: 3000K
CRI: 95
Beam Angle: 20°|24°|36°|50°|60°
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Dimming Type: Phase|0-10V
Output Current: 350mA
Output Voltage Range: 20-40V DC
Max Ambient Temperature: -40°F to +113°F (-40°C to +45°C)
Rated Life (70 Hours): 50000
IP Rating: IP54

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, millwork details, and wood ceiling applications in residential and commercial interiors where discreet trimless aesthetics and directional control are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Gimbal Round Invisible Flangeless Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	Phase\|0-10V
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	-40°F to +113°F (-40°C to +45°C)
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
