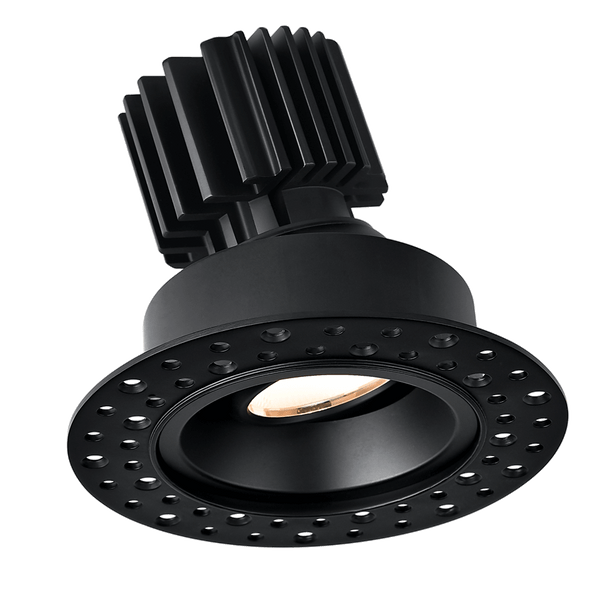

Lotus Tangra 3" Gimbal Round Invisible Trim, 5CCT, CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus Tangra 3" Gimbal Round Invisible Trim, 5CCT, CRI98

$144.25
  • SKU: LLL-L3G-RIT-5C98
  • MPN: L3G-RIT-5C98

Quick Overview

3" trimless gimbal recessed fixture with 20° tilt and 360° rotation, selectable 11W/15W power, up to 1600 lm, 5CCT (2700K-5000K), CRI98, and wet-location IP54 rating for premium architectural lighting.

WET RATED
IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus Tangra 3" Gimbal Round Invisible Trim is a premium architectural recessed lighting solution designed for clean, trimless ceilings and precise aiming. Built with a solid cast aluminum body and advanced optics, this Canadian-made fixture delivers high visual comfort and exceptional color quality for demanding residential and commercial spaces.

Key Features and Benefits

  • Trimless 3" gimbal design creates a sleek, modern ceiling appearance with directional control.
  • Flexible aiming with 20° tilt and full 360° rotation for task lighting, wall washing, and sloped ceilings.
  • Selectable 11W/15W operation with output up to 1600 lumens for adaptable performance.
  • High-fidelity light quality with CRI98 and 5CCT selection (2700K/3000K/3500K/4000K/5000K).
  • Certified for demanding installs: cETLus and FCC listed, Type IC, Air Tight, Open Plenum, and Wet Location IP54.
  • Long-term reliability backed by Lotus lifetime coverage (while manufactured) plus 5 years.

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V (driver dependent)
  • Dimming Type: Phase|0-10V
  • Beam Angle: 20°|24°|36°|50°|60°
  • CCT Range: 2700K-5000K
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • CRI: 98
  • Input to Fixture: 20-40V DC, max 350 mA constant current
  • Rated Life (L70): 50000 hours
  • Max Ambient Temperature: 113°F (45°C)
  • Cutout: 3 1/4"
  • Driver Clearance Above Ceiling: 4"

Common Uses

Ideal for upscale residential and commercial interiors, including kitchens, corridors, hospitality spaces, retail displays, and accent walls. Especially effective in sloped ceilings (up to 20°), focused task areas, and minimalist trimless architectural applications.
