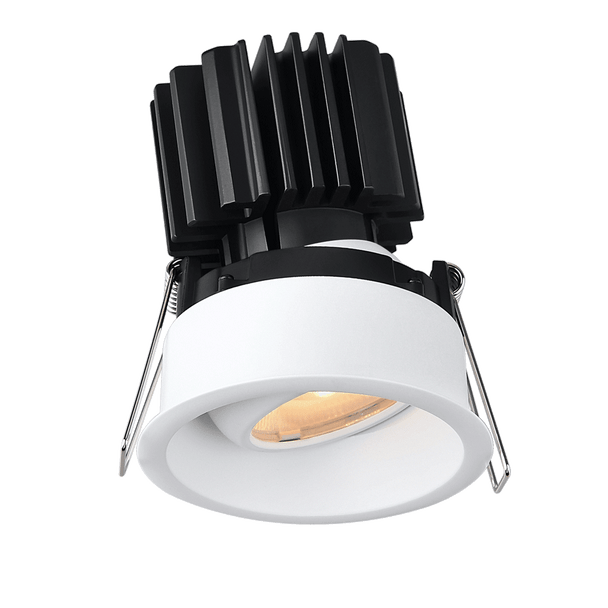

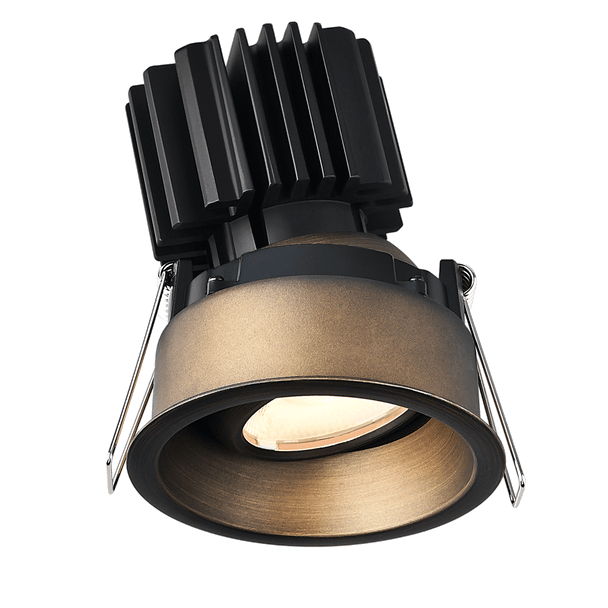

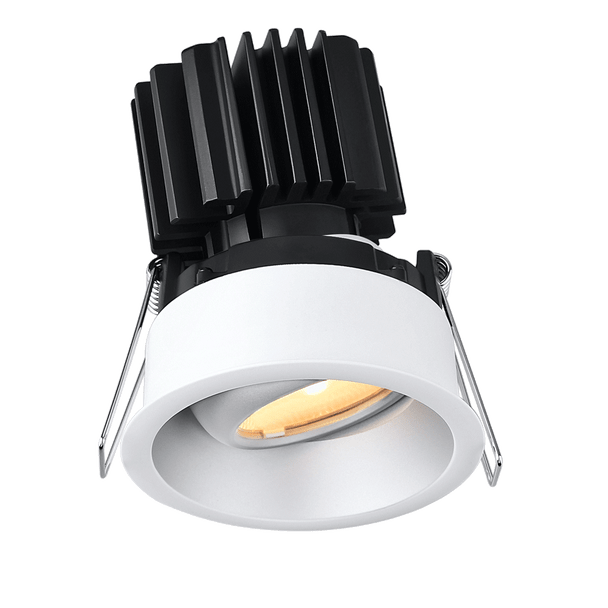

Tangra 3" Gimbal Round Recessed Thin Trim, L3G-RRT, 3000K, CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 3" Gimbal Round Recessed Thin Trim, L3G-RRT, 3000K, CRI98

$128.90
  • SKU: LLL-L3G-RRT-3K98
  • MPN: L3G-RRT-3K98

Quick Overview

3" gimbal recessed downlight with thin trim, 11W/15W selectable power, up to 1600lm, 20° tilt and 360° rotation, wet location IP54 rating, and high color quality 3000K CRI98 output for task and accent lighting.

  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-RRT is a premium 3" gimbal round recessed thin trim fixture designed for precise directional lighting in modern residential and commercial spaces. Built in Canada with a solid cast aluminum body and advanced optics, this series delivers high visual comfort, strong output, and exceptional color rendering. Its modular platform supports multiple beam, trim, and driver configurations for flexible project design.

Key Features and Benefits

  • High-fidelity light quality with 3000K CRI98 LED for rich, accurate color appearance
  • Adjustable aiming with 20° tilt and full 360° rotation for task lighting, wall washing, and sloped ceilings
  • Selectable 11W/15W operation (with compatible Tangra driver) to balance energy use and brightness needs
  • Wide optical flexibility with beam options from narrow to wide distributions
  • Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
  • Long-term reliability backed by Lotus line lifetime warranty coverage (+5 years after discontinuation)

Specifications

  • Model: L3G-RRT (Tangra 3" Gimbal Round Recessed Thin Trim)
  • LED package: 3K98 (3000K, CRI98)
  • Lumen output: up to 1600lm
  • Power: 11W/15W user selectable
  • Beam options in series: 20°|24°|36°|50°|60°
  • Fixture input: 20-40V DC, max 350mA constant current
  • Dimming/driver options: 120V Triac or 120-347V 0-10V (driver ordered separately)
  • Minimum dimming: 3% reverse phase cut / 4% forward phase cut
  • Operating temperature: -40°F to +113°F (-40°C to +45°C)
  • Projected life: 70% light output at 50,000 hours
  • J-box wire capacity: max 5 #12 AWG or 8 #14 AWG with FT6/CMP cable
  • Cut-out: 3"; driver clearance above ceiling: 4"

Common Uses

Ideal for task lighting, accent lighting, wall washing, and sloped ceiling applications up to 20° in homes, hospitality spaces, retail environments, and other architectural interiors requiring compact, adjustable recessed illumination.
