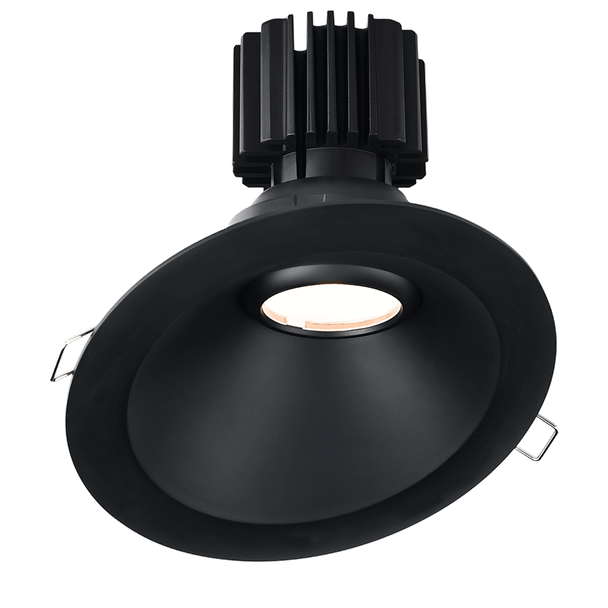

Tangra 4" Gimbal Round Sloped Wide Trim, 3000K, CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 4" Gimbal Round Sloped Wide Trim, 3000K, CRI98

$144.25
  • SKU: LLL-L3G-RSW-3K98
  • MPN: L3G-RSW-3K98

Quick Overview

4" gimbal round sloped wide trim recessed fixture for angled ceilings and wall washing, featuring 3000K CRI98 LED, up to 1600 lm, 20° tilt/360° rotation, and selectable 11W/15W operation with compatible Lotus drivers.

  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-RSW is a premium 4" gimbal round sloped wide trim fixture engineered for modern recessed applications. Built with a solid cast aluminum body and advanced optics, this series is designed to deliver high visual comfort, flexible aiming, and excellent color quality. Its modular platform supports multiple beam, trim, and driver configurations for tailored project performance.

Key Features and Benefits

  • High-quality light output up to 1600 lumens with ultra-high CRI options for accurate color rendering
  • Designed for sloped ceilings (5° to 55°) and wall washing with 20° tilt and full 360° rotation
  • Multiple LED choices including 5CCT, fixed 3000K, and Dim-to-Warm options for versatile ambiance control
  • Supports Triac and 0-10V dimming driver families with 11W/15W selectable power
  • Certified for demanding installs including wet location and plenum-rated environments
  • Backed by Lotus long-term line support plus 5-year warranty coverage

Specifications

  • Model: L3G-RSW (Tangra 4" Gimbal Round Sloped Wide Trim)
  • Part number variant: 3K98 Series (3000K, CRI98)
  • Lumen output: up to 1600 lm (at 3000K CRI95)
  • Beam angles: 20°, 24°, 36°, 50°, 60°
  • LED options available: 5CCT (2700K/3000K/3500K/4000K/5000K), 3000K, DTW 3000K-1800K, 4CCT+DTW 3500K-2700K
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Input to fixture: 20-40V DC, max 350 mA constant current
  • Driver options: 120V AC Triac dimmable or 120-347V AC 0-10V dimmable (driver sold separately)
  • Minimum dimming: 3% reverse phase cut / 4% forward phase cut
  • Cutout: 4 1/2"; required driver space above ceiling: 4"
  • J-box wire capacity: max 5 x #12 AWG or 8 x #14 AWG with FT6/CMP cable
  • Operating temperature: -40°F (-40°C) to +113°F (+45°C)
  • Projected life: 70% lumen maintenance at 50,000 hours

Common Uses

Ideal for residential and commercial interiors requiring directional recessed lighting, including sloped ceilings, accent lighting, wall washing, corridors, hospitality spaces, and wet-location areas where adjustable, high-CRI illumination is important.
