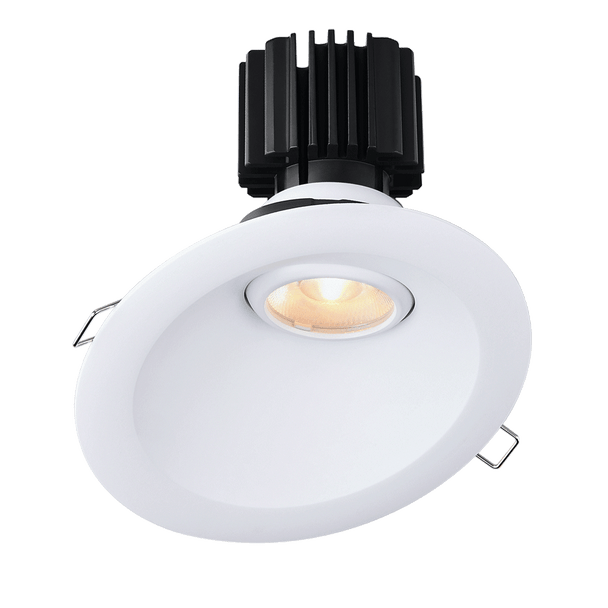

Tangra 4" Gimbal Round Sloped Wide Trim, 5CCT (2700K/3000K/3500K/4000K/5000K), CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Tangra 4" Gimbal Round Sloped Wide Trim, 5CCT (2700K/3000K/3500K/4000K/5000K), CRI98

$144.25
  • SKU: LLL-L3G-RSW-5C98
  • MPN: L3G-RSW-5C98

Quick Overview

4" gimbal round sloped wide trim recessed fixture for sloped ceilings and wall washing, featuring 11W/15W selectable power, up to 1600lm, 20° tilt with 360° rotation, and wet location IP54 rating.

  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-RSW series is a premium 4" gimbal round sloped wide trim fixture designed for demanding architectural and residential applications. Built with a solid cast aluminum body and advanced optics, it delivers flexible aiming, high visual comfort, and excellent color quality. As part of the Tangra lineup, it offers modular driver and LED options to tailor performance for each project.

Key Features and Benefits

  • High-fidelity light output with ultra-high CRI 98 and selectable 5CCT settings for versatile ambiance control
  • Precision aiming with 20° tilt and full 360° rotation, ideal for sloped ceilings and accent lighting
  • Selectable 11W/15W operation (with compatible Tangra driver) to balance efficacy and output needs
  • Multiple beam distributions (20°, 24°, 36°, 50°, 60°) to support focused or wider illumination patterns
  • Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
  • Long-term reliability backed by Lotus line-lifetime coverage plus 5 years

Specifications

  • Model: L3G-RSW (Tangra 4" Gimbal Round Sloped Wide Trim)
  • LED package: 5C98 = 5CCT (2700K/3000K/3500K/4000K/5000K), CRI98
  • Lumen output: up to 1600 lm (at 3000K CRI95 configuration)
  • Input via remote driver: 120V Triac dimmable or 120-347V 0-10V dimmable options
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Fixture input: 20-40V DC, max 350mA constant current
  • Dimming performance: 3% reverse phase cut / 4% forward phase cut
  • Operating temperature: -40°F (-40°C) to +113°F (+45°C)
  • J-box wire capacity: max 5 x #12 AWG or 8 x #14 AWG with FT6/CMP cable
  • Cutout: 4 1/2"; required driver clearance above ceiling: 4"
  • Rated life: 70% lumen maintenance at 50,000 hours

Common Uses

Ideal for sloped ceilings from 5° to 55°, wall washing, and directional accent lighting in homes, hospitality spaces, retail environments, and other interior or protected exterior wet-location applications.
