Description

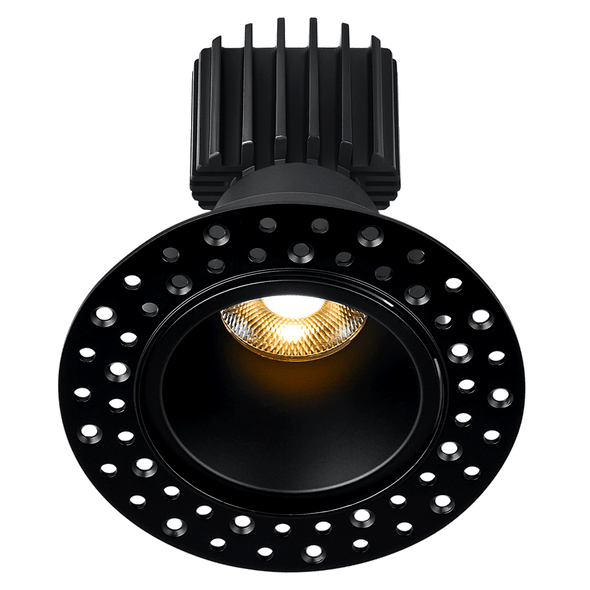

The Lotus L3F-RDF Tangra series is a premium 3" fixed round deep invisible flangeless recessed fixture engineered for refined architectural spaces. Built in Canada with a solid cast aluminum body, it combines advanced optics, high color quality, and modular driver flexibility for residential and commercial projects.

Key Features and Benefits

Deep regressed, low-glare optical design ideal for millwork and wood ceiling applications.
Field-flexible light output with 11W/15W selectable power and up to 1600 lumens performance.
Multiple beam spreads (20°, 24°, 36°, 50°) and optic styles for precise accent or general illumination.
Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 ratings.
Long-term confidence backed by Lotus lifetime line support plus 5-year warranty coverage.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable
Voltage: 120V (Triac driver option) | 120-347V (0-10V driver option)
Color Temperature: 2700K|3000K|3500K|4000K|5000K
CRI: 95
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Beam Angle: 20°|24°|36°|50°
Fixture Input: 20-40V DC, max 350mA constant current
Rated Life: 50000 hours (70% lumen maintenance)
Operating Temperature: -40°F (-40°C) to +113°F (+45°C)

Common Uses

Ideal for upscale residential and commercial interiors, including millwork features, wood ceilings, hospitality spaces, retail displays, and other environments where minimal glare, high CRI, and clean flangeless aesthetics are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Round Deep Invisible Flangeless Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Dimming Type:	0-10V\|Phase
Efficacy (lm/W):	145
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Primary Material:	Cast Aluminum
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
